Moxa Technologies NPort 5450AI-M12 Quick Installation Guide

- 7 -
Software Installation Information
For the NPort’s configuration, the default IP address of the NPort is:
LAN: Static IP = 192.168.127.254; netmask = 255.255.255.0
You may log in with the password moxa to change any settings to
meet your network topology (e.g., IP address) or serial device (e.g.,
serial parameters). If you would like to apply the Real COM mode to
your application, you will need to install the NPort’s driver on your
desktop. You may also refer to Moxa’s support website
https://www.moxa.com/support
for the user’s manual, driver, SNMP
MIB, and NPort Search Utility.
NOTE
For the NPort with DB Male serial ports, you may refer to the
DB9 Male Ports
pin assignment section to loop back pin 2 and
pin 3 for the RS-232 interface.

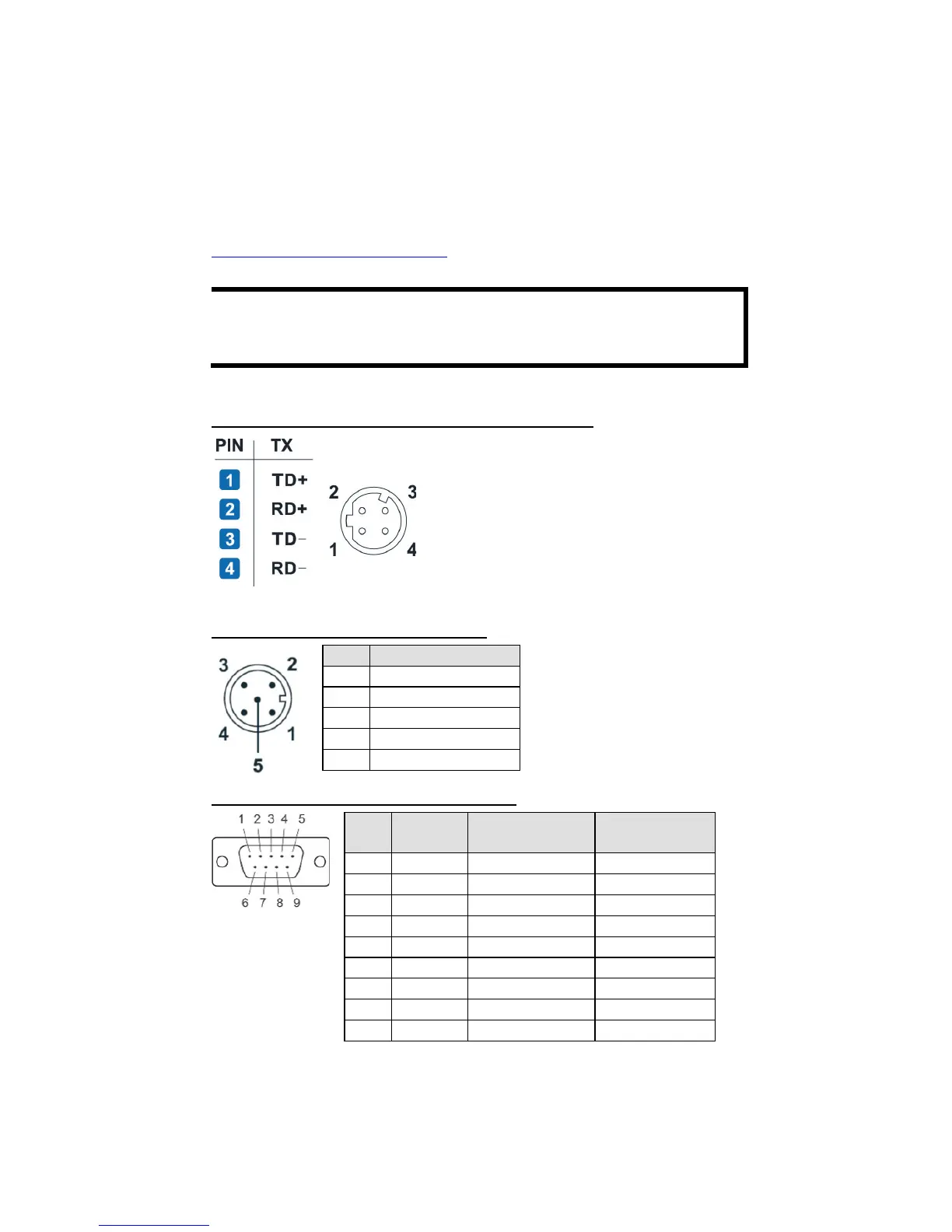

Pin Assignments and Cable Wiring
Ethernet M12 D-coded 4-pin female connector:
Housing: shield
Power M12 5-pin male connector:
PIN
Description
1
Input V+
2
Not assigned
3
Input V-
4
Not assigned
5
Functional ground
RS-232/422/485 (Male DB9) Pinouts
PIN RS-232
RS-422/
RS-485 (4W)
RS-485 (2W)
1
DCD
TxD-(A)
–
2
RXD
TxD+(B)
–
3
TXD
RxD+(B)
Data+(B)
4
DTR
RxD-(A)
Data-(A)
5
GND
GND
GND
6
DSR
–
–
7
RTS
–
–
8
CTS
–
–
9
–
–
–
Four cables are available as optional accessories that can be used to
connect the NPort 5000AI-M12 series to RS-232 serial devices. The pin
assignments for both connector types are shown below.

Moxa Technologies NPort 5450AI-M12 Specifications

General

Certification	CE, FCC, EN 55022 Class A, FCC Part 15 Subpart B Class A, EN 55024, EN 50155, EN 50121-4, IEC 60068-2-6
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow control support	Yes
Serial interface type	RS-232/422/485
Serial ports quantity	4
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Input voltage	12 - 48 V
Operating temperature (T-T)	-25 - 55 °C
Safety	UL 60950-1, EN 60950-1
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64\\r SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3\\r Linux kernel 2.4.x, 2.6.x, 3.x

Weight and Dimensions

Weight	686 g
Dimensions (WxDxH)	80 x 216.6 x 52.9 mm
