NPort 5000 Series User Manual
146

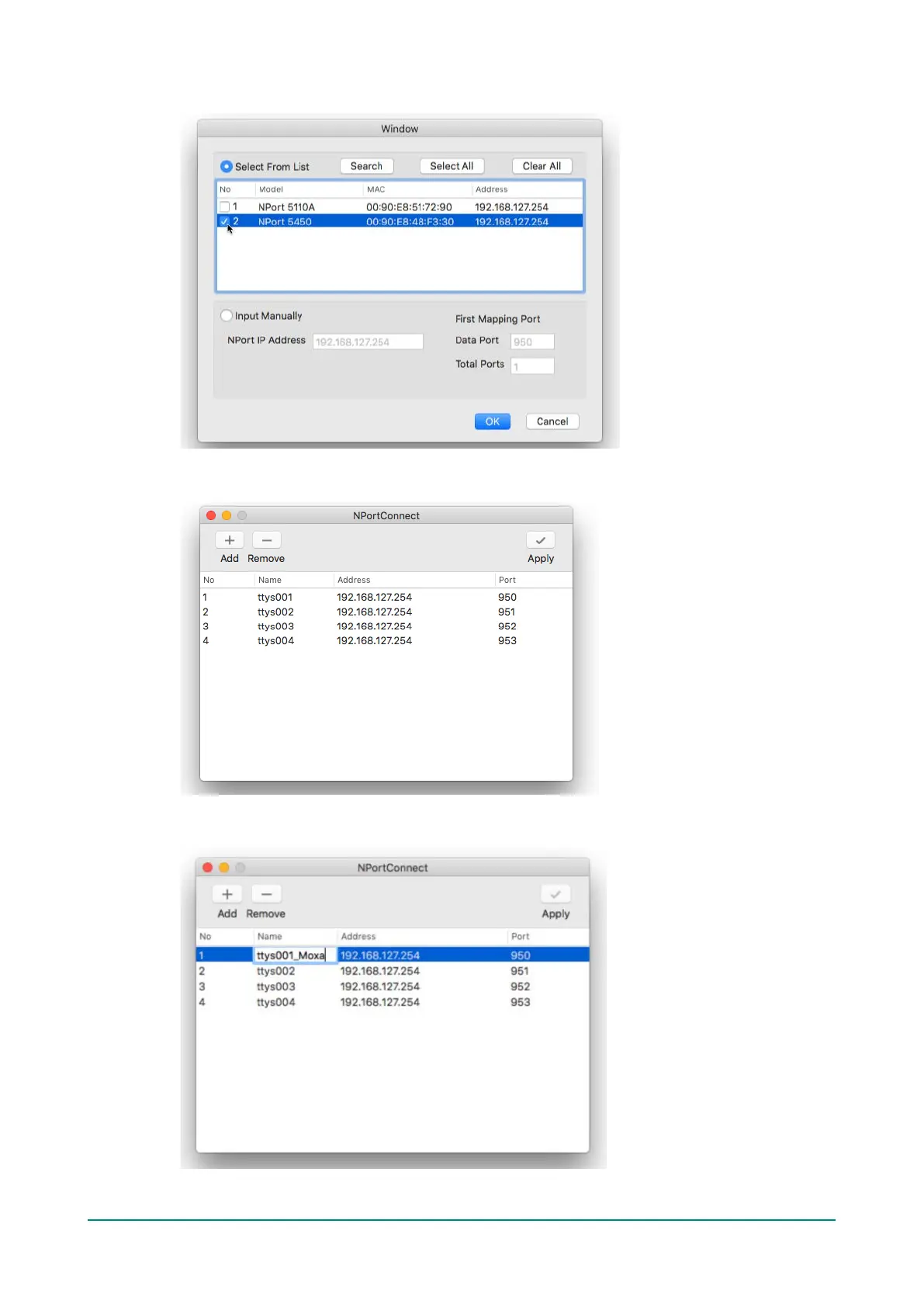

6. Select the model types that are for the tty port mapping and click OK.
7. NPortConnect would auto assign the tty name and corresponding port number to the IP address of the
selected NPort.
8. The tty name and port number are editable. Please note that these changed values are only for
mapping configuration and would not change the values in the NPort settings.

Moxa Technologies NPort 5450AI-M12 Specifications

General

Certification	CE, FCC, EN 55022 Class A, FCC Part 15 Subpart B Class A, EN 55024, EN 50155, EN 50121-4, IEC 60068-2-6
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow control support	Yes
Serial interface type	RS-232/422/485
Serial ports quantity	4
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Input voltage	12 - 48 V
Operating temperature (T-T)	-25 - 55 °C
Safety	UL 60950-1, EN 60950-1
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64\\r SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3\\r Linux kernel 2.4.x, 2.6.x, 3.x

Weight and Dimensions

Weight	686 g
Dimensions (WxDxH)	80 x 216.6 x 52.9 mm
