Moxa Technologies NPort 5450AI-M12 User Manual

NPort 5000 Series User Manual
169

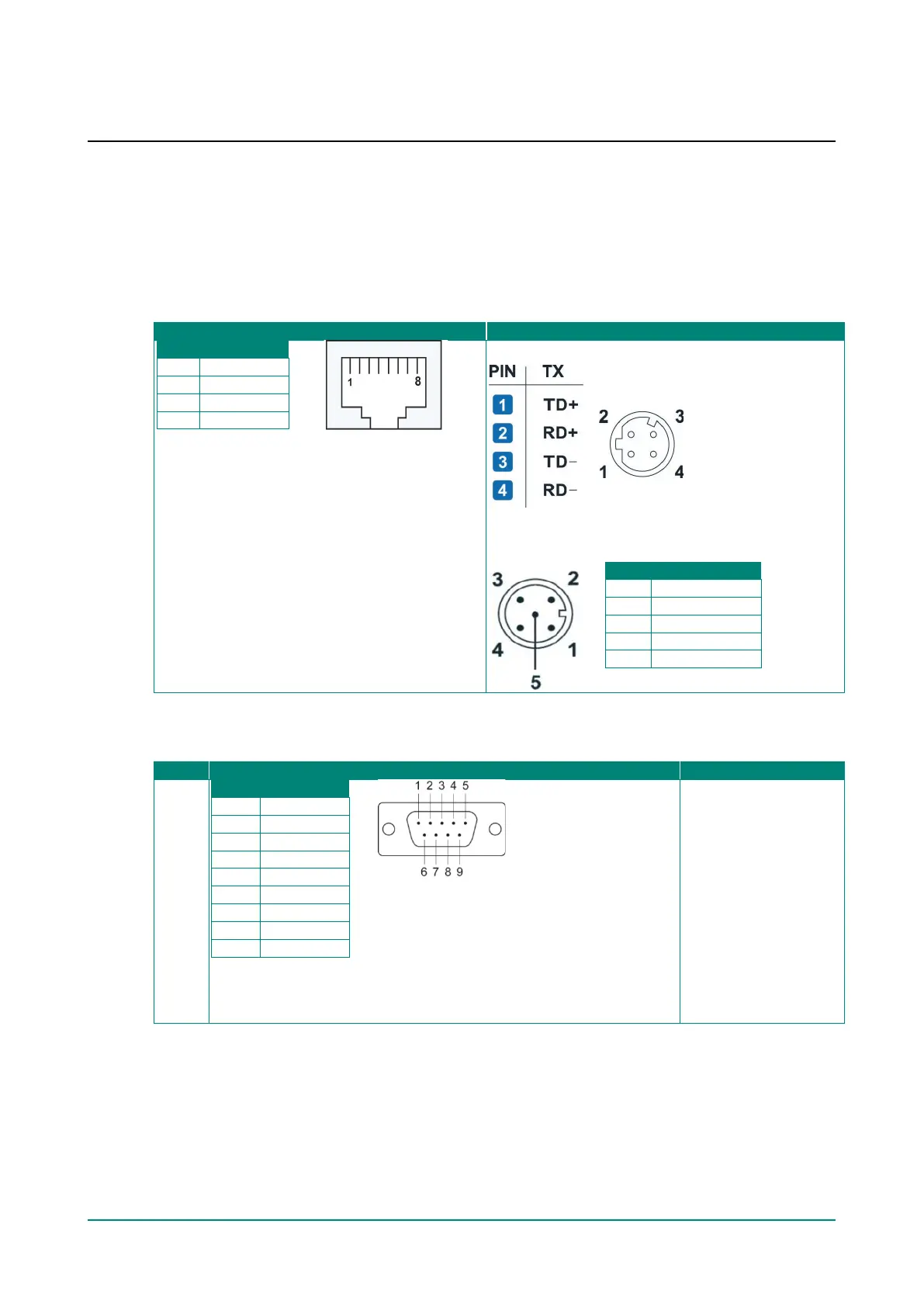

A. Pinouts and Cable Wiring
Port Pinout Diagrams
Ethernet Port Pinouts
Ethernet RJ45
Ethernet M12 (For NPort 5000AI-M12 only)
Pin
Signal
1
Tx+
2
Tx-
3
Rx+
6
Rx-
Ethernet M12:
Housing: shield
Power M12:
PIN
Description
1
Input V+
2
Not assigned
3
Input V-
4
Not assigned
5
Function ground
Serial Port Pinouts
Pin Assignment
Applicable Products
DB9 Male RS
-
232 Port Pinouts
Pin
RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
–
NPort 5110, NPort 5150,
NPort 5110A, NPort
5150A, NPort P5150A,
NPort_5000AI-M12,
NPort 5210A, NPort
5250A, NPort 5410,
NPort 5410/5450/5450I,
NPort 5610-8-DT, 5650-
8-DT, 5650I-8-DT, 5610-
8-DTL/DTL-T, 5650-8-
DTL/DTL-T, and
5650I-8-DTL/DTL-T,
NPort IA5150/5250
NPort IA5150A/5250A

Moxa Technologies NPort 5450AI-M12 Specifications

General

Certification	CE, FCC, EN 55022 Class A, FCC Part 15 Subpart B Class A, EN 55024, EN 50155, EN 50121-4, IEC 60068-2-6
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow control support	Yes
Serial interface type	RS-232/422/485
Serial ports quantity	4
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Input voltage	12 - 48 V
Operating temperature (T-T)	-25 - 55 °C
Safety	UL 60950-1, EN 60950-1
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64\\r SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3\\r Linux kernel 2.4.x, 2.6.x, 3.x

Weight and Dimensions

Weight	686 g
Dimensions (WxDxH)	80 x 216.6 x 52.9 mm
