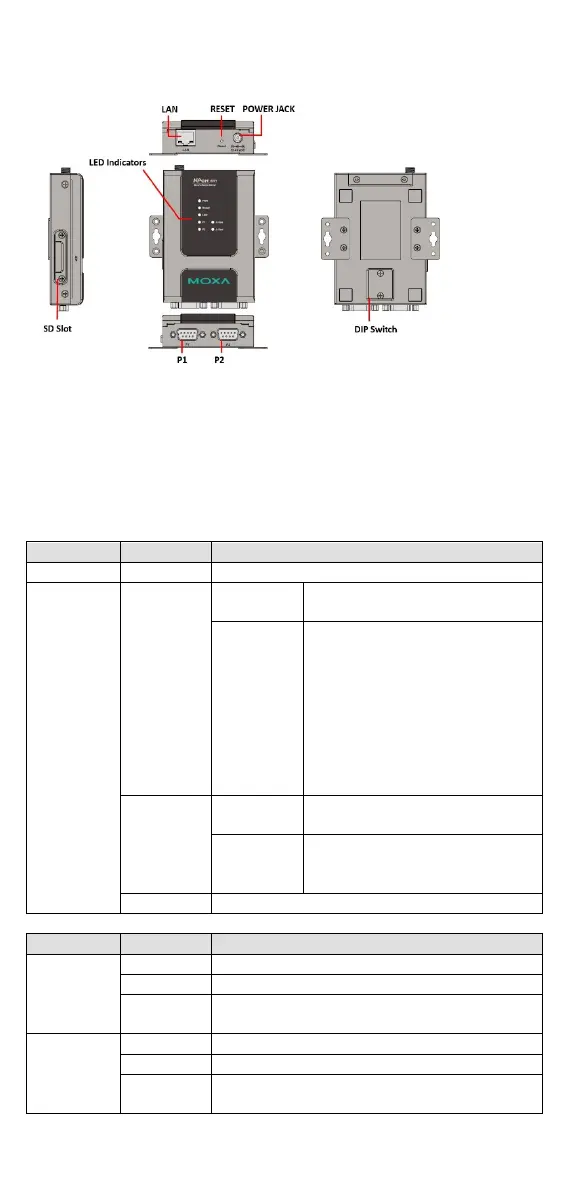

NPort 6250
Reset Button—Press the Reset Button continuously for 5 sec to load
factory defaults. Use a pointed object, such as a straightened paper clip
or toothpick, to press the reset button. This will cause the Ready LED to
blink on and off. The factory defaults will be loaded once the Ready LED
stops blinking (after about 5 seconds). At this point, you should release
the reset button.
LED Indicators
LED Name
LED Color
LED Function
PWR
Red
Power is being supplied to the power input.
Ready
Red
Steady on
Power is on and the NPort is
booting up.
Blinking
Indicates an IP conflict, or, the
DHCP or BOOTP server did not
respond properly or a relay
output
occurred. Check the relay
output first. If after resolving
the relay output the RDY LED is
still blinking, then there is an IP
conflict, or the DHCP or BOOTP
server did not respond properly.
Green
Steady on
Power is on and the NPort is
functioning normally.
Blinking
The device server has been
located by the Administrator’s
Location function.
Off
Power is off, or power error condition exists.
LED Name
LED Color
LED Function
Link
Orange
10 Mbps Ethernet connection
Green
100 Mbps Ethernet connection
Off
Ethernet cable is disconnected, or has a
short.
P1, P2
Orange
Serial port is receiving data.
Green
Serial port is transmitting data.
Off
No data is being transmitted or received
through the serial port.
