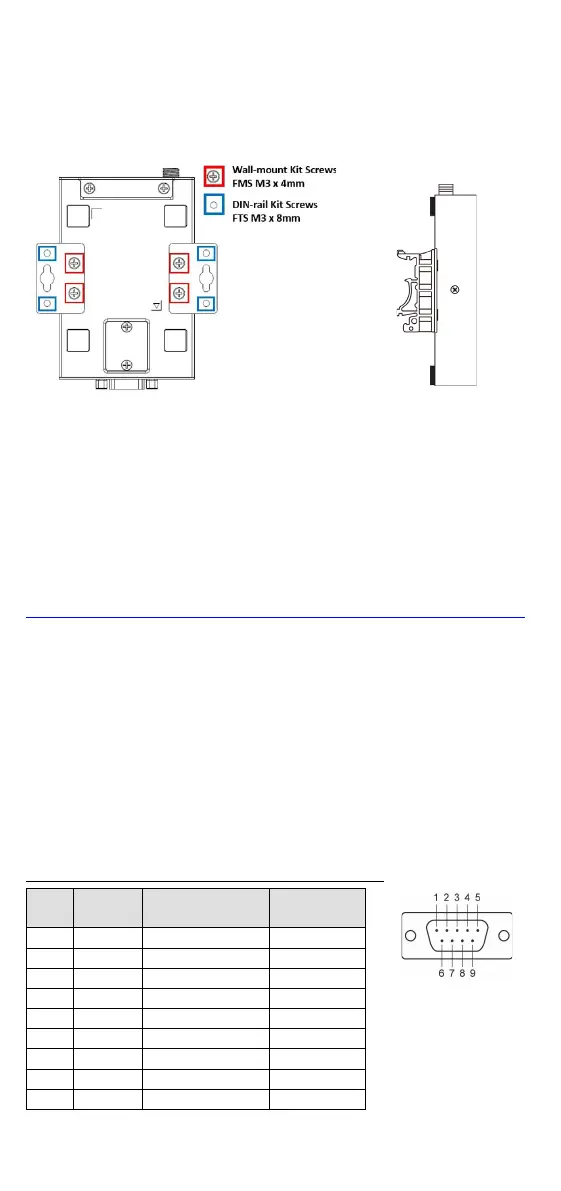

The NPort 6150/6250 can be placed flat on a desktop or other
horizontal surface. In addition, you may use the DIN-rail or wall--mount
options, as illustrated below.
Wall-mount
DIN-rail
Software Installation Information
For the NPort’s configuration, the default IP address of the NPort is
192.168.127.254. You may log in with the account name admin and
password moxa to change any settings to meet your network topology
(e.g., IP address) or serial device (e.g., serial parameters).
For software installation, download the relative utilities from Moxa's
website:
https://www.moxa.com/support/support_home.aspx?isSearchShow=1
• Download the NPort Windows Driver Manager and install it as the
driver to run with Real COM mode of the NPort Series.
• Execute NPort Windows Driver Manager; then map the virtual COM
ports on your Windows platform.
• You may refer to the DB9 Male pin assignment section to loop back
pin 2 and pin 3 for the RS-232 interface to carry out a self-test on the
device.
• Use HyperTerminal or a similar program (you may download Moxa's
program, called PComm Lite) to test whether the device is good or not.
Pin Assignments and Cable Wiring
RS-232/422/485 Pin Assignment (male DB9)
Pin RS-232
RS-422
4-wire RS-485
2-wire RS-
485
1
DCD
TxD-(A)
–
2
RXD
TxD+(B)
–
3
TXD
RxD+(B)
Data+(B)
4
DTR
RxD-(A)
Data-(A)
5
GND
GND
GND
6
DSR
–
–
7
RTS
–
–
8
CTS
–
–
9
–
–
–
