Moxa Technologies NPORT 6150 Quick Installation Guide

- 2 -
Overview
The NPort 6150/6250 series secure serial device servers provide reliable
serial-to-Ethernet connectivity for a wide range of serial devices. The
NPort 6150/6250 support TCP Server, TCP Client, UDP, and
Pair-Connection operation modes to ensure the compatibility of network
software. In addition, the NPort 6150/6250 also support Secure TCP
Server, Secure TCP Client, Secure Pair-Connection, and Secure Real COM
modes for security critical applications such as banking, telecom, access
control, and remote site management.
Package Checklist
Before installing a NPort 6150/6250 secure device server, verify that the
package contains the following items:
• 1 NPort 6150 or NPort 6250
• Power adapter (does not apply to -T models)
• 2 wallmount ears
• Documentation and software CD
• Quick installation guide (this guide)
• Warranty card
Optional Accessories
• DK-35A: DIN-rail mounting kit (35 mm)
• DIN-rail power supply
• CBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable
• CBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable
NOTE: Please notify your sales representative if any of the above items
are missing or damaged.
Hardware Introduction

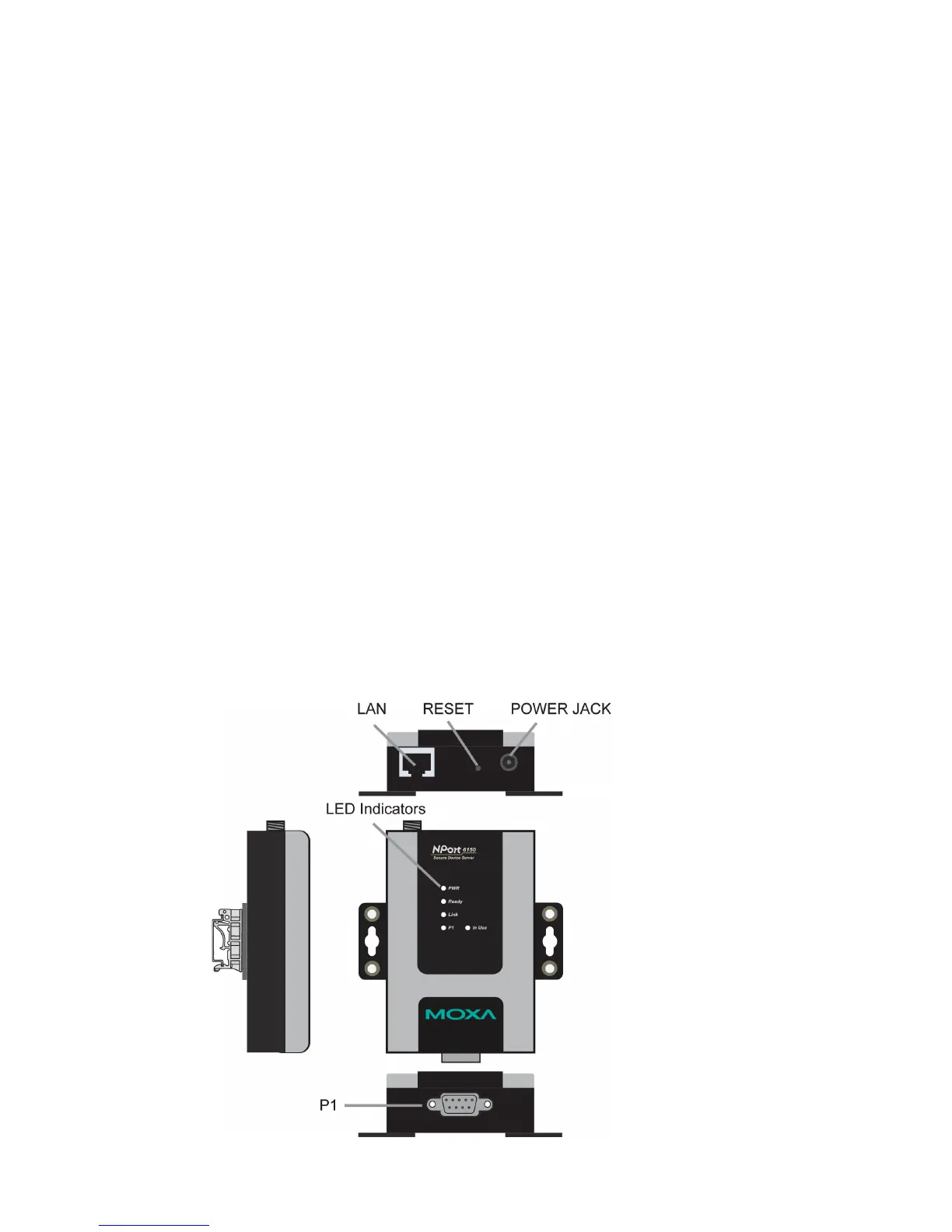

NPort 6150

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
