Software Installation Information
The Documentation and software CD contains the user’s manual, NPort
Search Utility, and the PComm Lite Suite. Insert the CD into your
computer’s CD-ROM drive and follow the on-screen instructions. Please
refer to the user’s manual for additional details on using the NPort Search
Utility and PComm Lite.
Pin Assignments and Cable Wiring

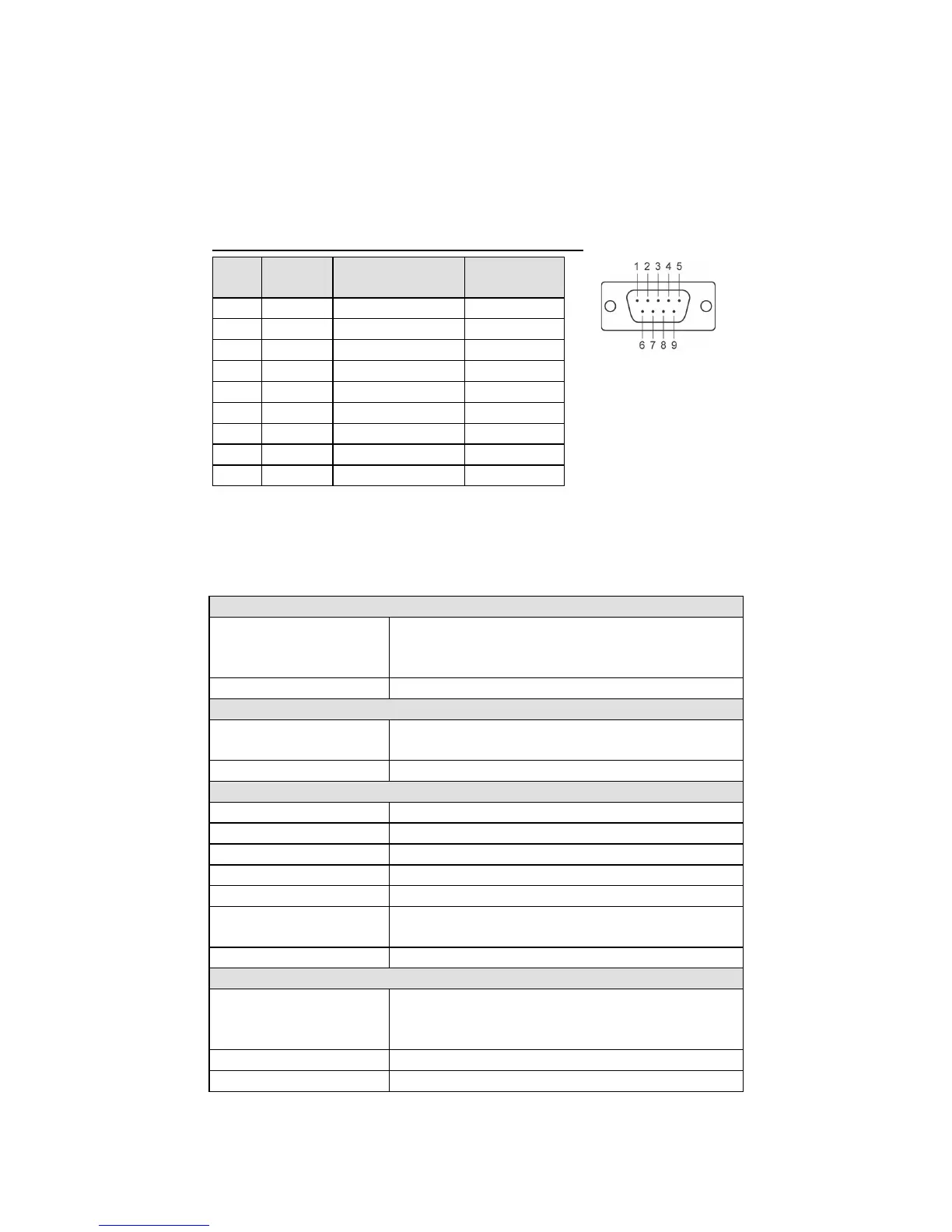

RS-232/422/485 Pin Assignment (male DB9)
Pin RS-232
RS-422
4-wire RS-485
2-wire
RS-485
1
DCD
TxD-(A)
–
2
RXD
TxD+(B)
–
3
TXD
RxD+(B)
Data+(B)
4
DTR
RxD-(A)
Data-(A)
5
GND
GND
GND
6
DSR
–
–
7
RTS
–
–
8
CTS
–
–
9
–
–
–
Two serial cables for connecting the NPort 6150 to a serial device can be
purchased separately. The wiring diagrams for the two cables are shown
below.
Specifications
LAN
Ethernet
NPort 6150/6250: 10/100 Mbps, RJ45
NPort 6250-S-SC: Single-mode fiber
NPort 6250-M-SC: Multi-mode fiber
Protection
Built-in 1.5 kV magnetic isolation
Serial
No. of ports
NPort 6150: 1
NPort 6250: 2
Interface
RS-232/422/485 (male DB9)
Serial Communication Parameters
Parity
None, Even, Odd, Space, Mark
Data bits
5, 6, 7, 8
Stop bit(s)
1, 1.5, 2
Flow control
RTS/CTS, XON/XOFF, DTR/DSR
Speed
50 bps to 921.6 kbps
Console Port RS-232 (please see the User’s Manual for
detailed operating instructions)
Memory
One SD socket
Software Features
Protocols
ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet,
DNS, SNMP, HTTP, SMTP, HTTPS, SSL, SSH,
PPPoE, RFC2217
Utilities
NPort Search Utility for Windows
Security Protocols
DES/3DES/AES

Moxa Technologies NPORT 6150 Specifications

General

Display	-
Baud rate	921.6 Kbit/s
Data bits	5, 6, 7, 8
Isolation	1.5 kV
Stop bits	1, 1.5, 2
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signals	GND, RxD+, RxD-, TxD+, TxD-
RS-485 signals	Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
Flow Control type	RTS/CTS, XON/XOFF
Flow control support	Yes
Serial interface type	RS-232, RS-422, RS-485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Surge protection voltage	0.5 kV
Mean time between failures (MTBF)	2097705 h
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Built-in processor	No
Input voltage	12 - 48 V
Power consumption	285 mA
Power source type	DC
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security algorithms	AES, DES, SSH, SSL/TLS
Product color	Black, Blue, Grey
Housing material	Metal
Sustainability certificates	RoHS

Weight and Dimensions

Weight	700 g
Dimensions (WxDxH)	67 x 100.4 x 29 mm
