Moxa Technologies OnCell Series User Manual

- 4 -

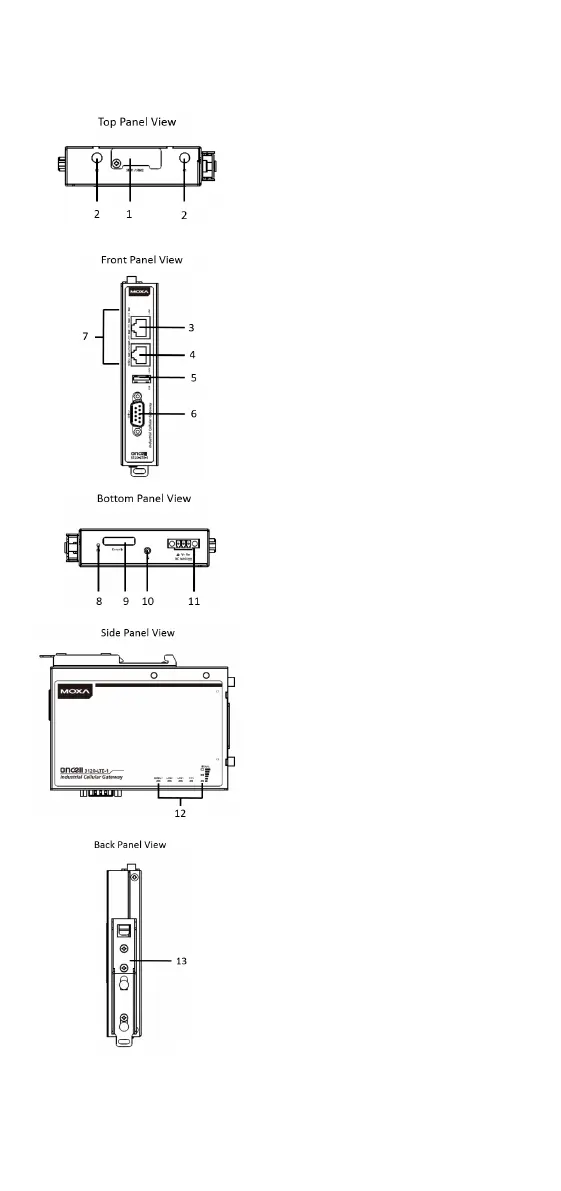

Panel Layout of the OnCell 3120-LTE-1
1. SIM card holders (SIM1/SIM2)
2. 2x2 MIMO cellular antenna port
3. 10/100 Base-T(X) Ethernet port 1
(RJ45)
4. 10/100 Base-T(X) Ethernet port 2
(RJ45)
5. USB port
6. DB9 serial port
7. LED display
8. Reset button
9. Console port (reserved for
engineering use)
10.
Grounding screw (M3)
11.
Terminal block (V+, V-, GND)
12.
LED display
13.
DIN-rail mounting kit

Moxa Technologies OnCell Series Specifications

General

Brand	Moxa Technologies
Model	OnCell Series
Category	Gateway
Language	English
