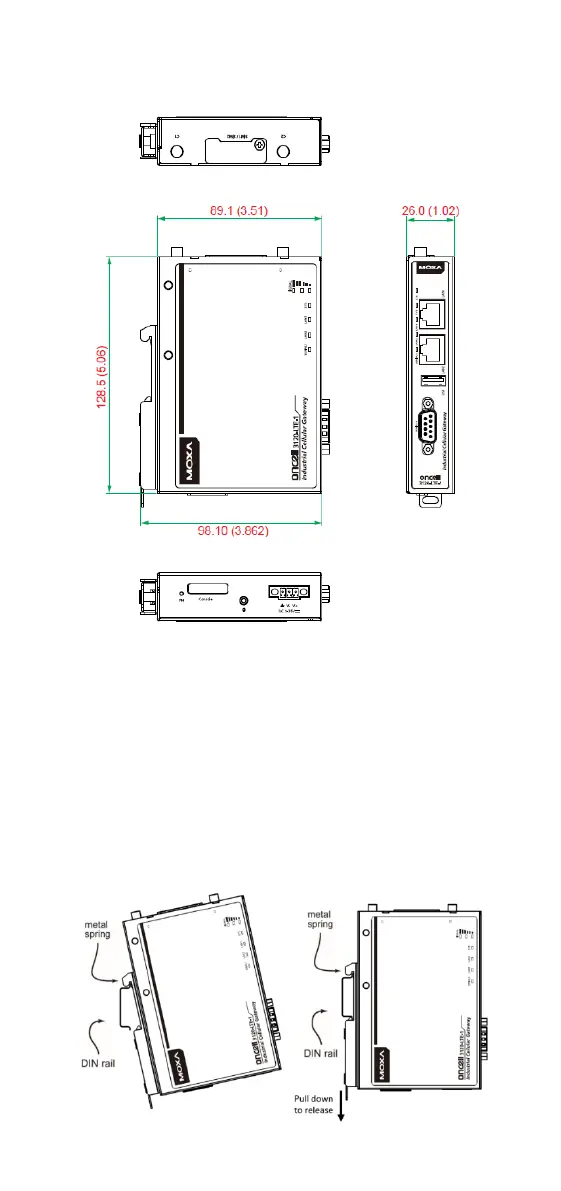

Device Dimensions
DIN-rail Mounting
The OnCell 3120-LTE-1 Series comes with a DIN-rail kit attached to the
back panel. Mount the OnCell 3120-LTE-1 Series on corrosion-free
mounting rails that meet the EN 60715 standard.
Installation
STEP 1: Insert the upper lip of the DIN rail into the top hook of the
DIN
-rail mounting kit.
STEP 2:
Press the OnCell 3120-LTE-1 Series towards the DIN rail until
it snaps into
place.
