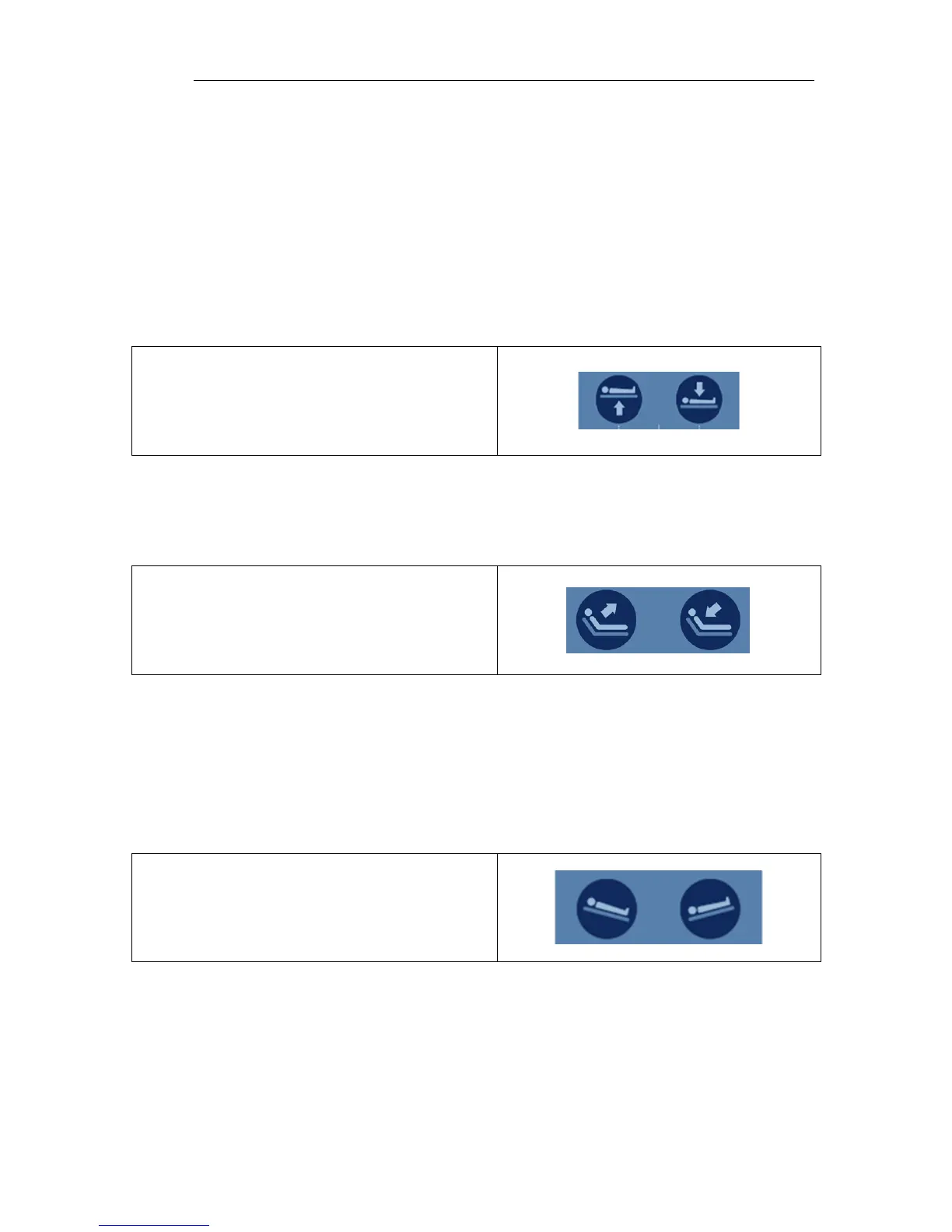

Hand Control Functions
Hand control functions will vary depending on the model purchased. Your hand control
may not include all of the functions listed below.
Adjusting Surface Height
The minimum surface height is 19” when the surface is level but will stop at heights
above this value depending on the angle of Trendelenburg or Reverse Trendelenburg.
The limitations are to protect against equipment damage and injury.
Press and hold the applicable hand control
function to adjust the seat height.
Adjusting Fowler
The fowler section may be adjusted between 0° and 65°.
Press and hold the applicable hand control
function to independently adjust the fowler.
Adjusting Trendelenburg
The Trendelenburg / Reverse Trendelenburg angle is limited at various heights in order
to protect against equipment damage and injury. Depending on the product model, the
full range of Trendelenburg / Reverse Trendelenburg will be available between 26” – 30”
of surface height.
Press and hold the applicable hand control
function to independently adjust the
Trendelenburg angle.
