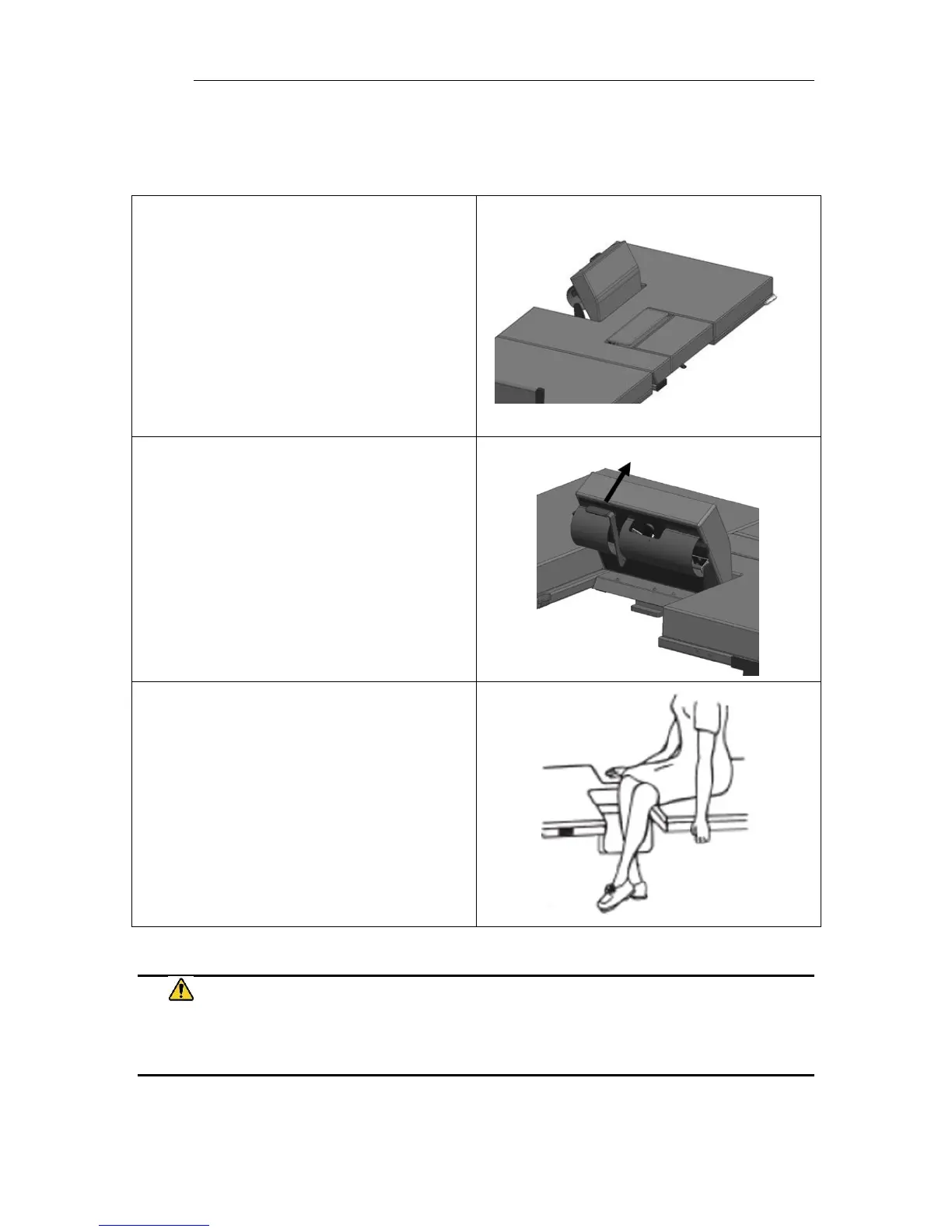

Using the Sonographer Drop Sections
The sonographer drop section allows right handed scanners to get closer to the patient.
It can also be adjusted to act as a patient back rest.
To use the sonographer drop section as a
back rest pull up on the drop section until
it locks into position. There are two back
rest positions to choose from.
To lower from the back rest position, pull
on the handle to release the back rest lock.
Hold the handle while lowering the drop
section until it returns to its stored
position.
To open the sonographer drop section for
better patient access, pull the handle to
release the drop section latches. The
sonographer may be seated as shown
during scanning.
To close the drop section, lift up on the
drop section up until latches engages.
WARNING
• Failure to latch Drop Sections may result in patient injury. Verify Drop Sections are locked in
position before and after use.
