MPPT ML2420 User Manual

①
②
③
④
⑤
⑥
1211
PV array indicator:
BAT indicator:
LOAD indicator:
ERROR indicator:

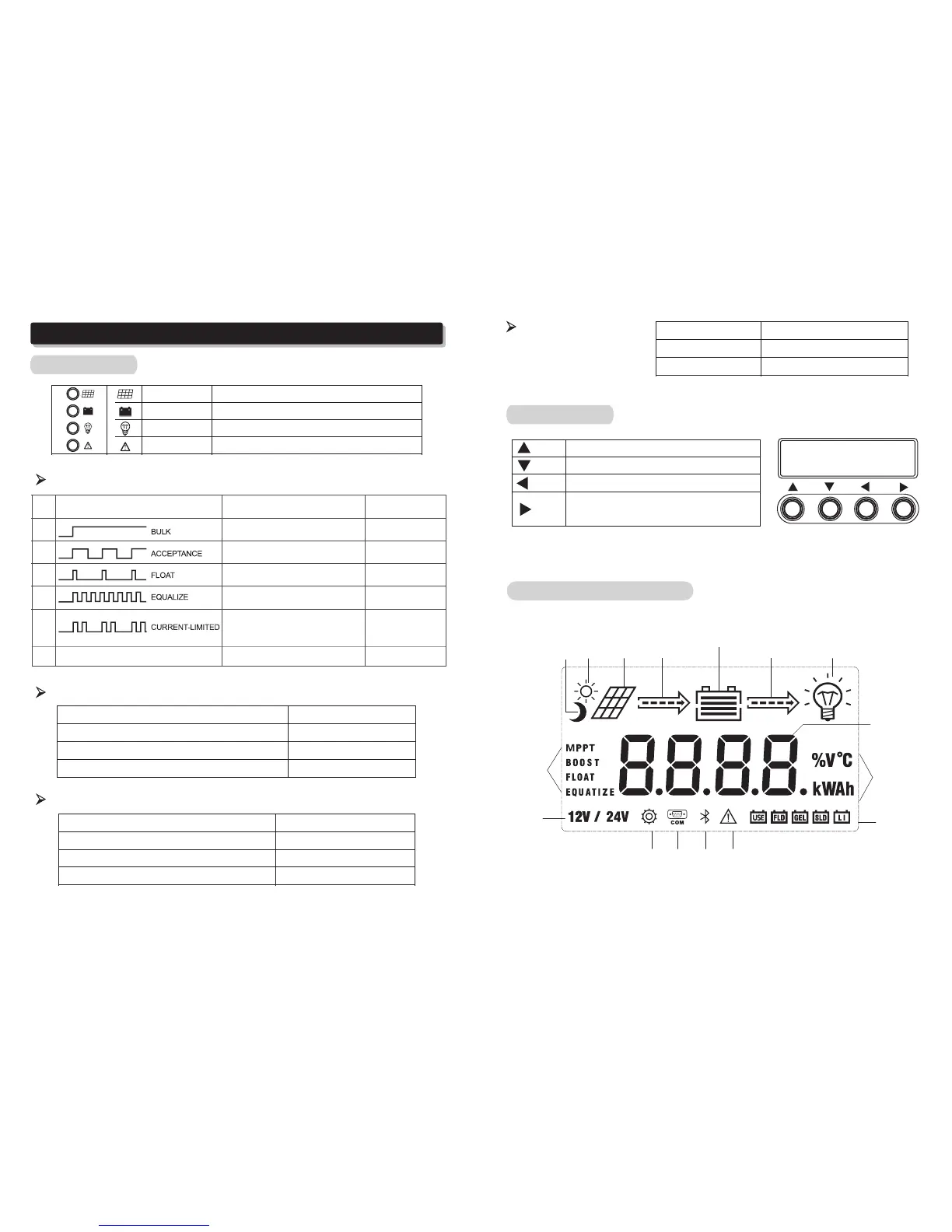

3. Product Operation and Display
3.1 LED Indicators
PV array indicator
BAT indicator
LOAD indicator
ERROR indicator
Indicating the controller's current charging mode.
Indicating the battery's current state.
Indicating the loads' On/ Off and state.
Indicating whether the controller is functioning normally.
Steady on
Slow flashing
(a cycle of 2s with on and off each lasting for 1s)
Single flashing
(a cycle of 2s with on and off lasting respectively for
0.1s and 1.9s)
Quick flashing
(a cycle of 0.2s with on and off each lasting for 0.1s)
Double flashing
(a cycle of 2s with on for 0.1s, off for 0.1s, on again
for 0.1s, and off again for 1.7s)
Off
MPPT charging
Boost charging
Floating charging
Equalizing charging
Current-limited
charging
No charging
No.
Indicator state
Charging state
Graph
Indicator state
Steady on
Slow flashing
(a cycle of 2s with on and off each lasting for 1s)
Quick flashing
(a cycle of 0.2s with on and off each lasting for 0.1s)
Battery state
Normal battery voltage
Battery over-discharged
Battery over-voltage
Indicator state
Off
Quick flashing (a cycle of 0.2s with on and off each lasting for 0.1s)
Steady on
Battery state
Load turned off
Load overloaded/ short-circuited
Load functioning normally
Indicator state
Off
Steady on
Battery state
System operating normally
System malfunctioning
3.2 Key Operations
Up
Down
Return
Set
Page up; increase the parameter value in setting
Page down; decrease the parameter value in setting
Return to previous menu (exit without saving)
Enter into sub-menu; set/ save
Turn on/ off loads (in manual mode)
3.3 LCD Startup and Main Interface
Nighttime
Daytime
Solar panel
Charging
Battery
Discharging
Load
Parameter value
Unit
Battery type
AbnormalityBluetoothSerial
port
Setting
System
voltage
Charging
stage
