SMPPT Installation & Operation Manual Version 1.0
13

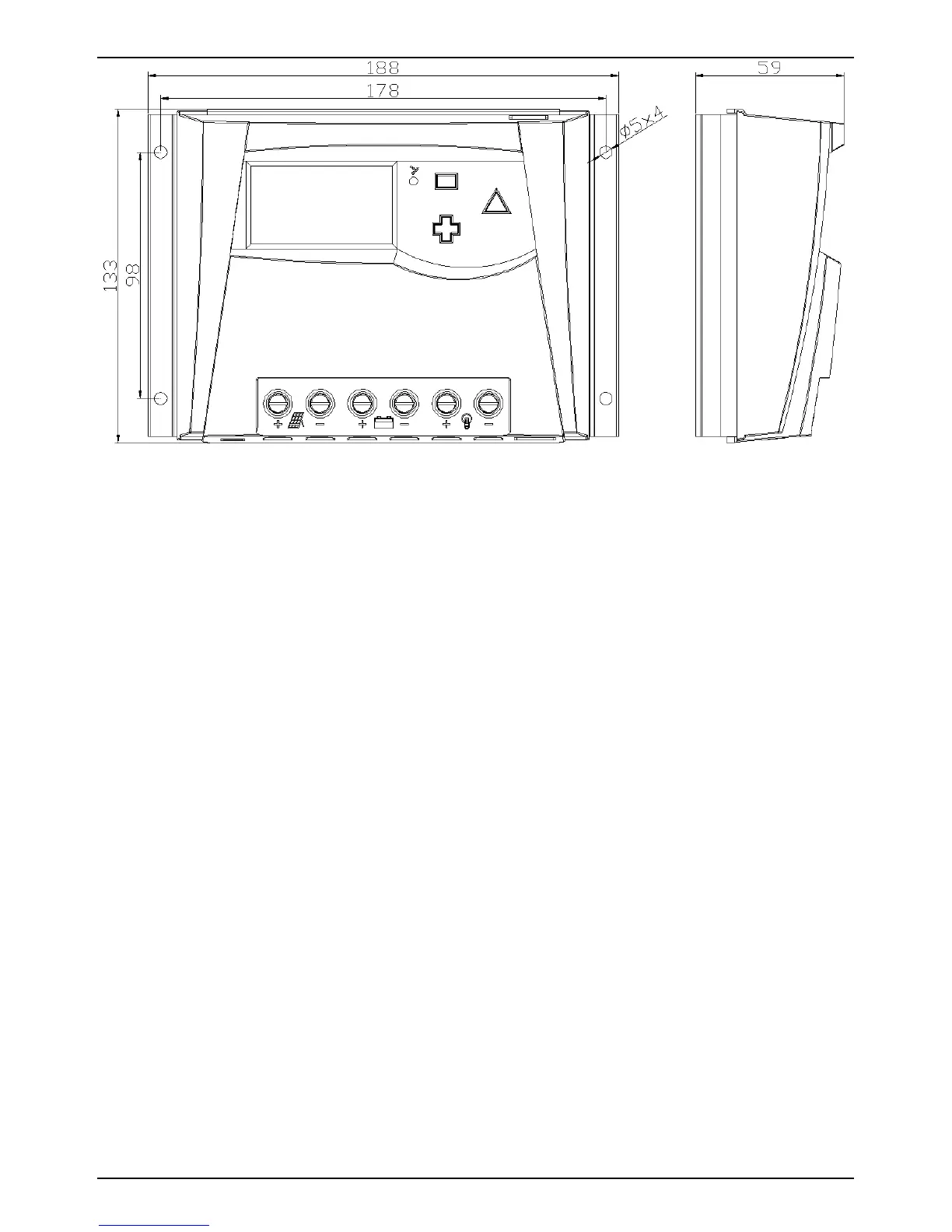

Figure 4.1-3: Dimensions for SMPPT30D (Unit: mm)
SMPPT30D dimensions(Figure 4.1-3):
Mounting hole pitch: 98mm*177mm
Mounting hole diameter: Ф5mm
Height*Width*Thickness: 128mm*187mm*59mm
Connecting terminals: Maximum 35mm²
4.2 Connecting Diagram
