User Guide
MP2672 Evaluation Kit (EVKT-MP2672)
MP2672 Evaluation Kit User Guide rev 1.0 MonolithicPower.com 9
10/15/2019 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2019 MPS. All Rights Reserved.

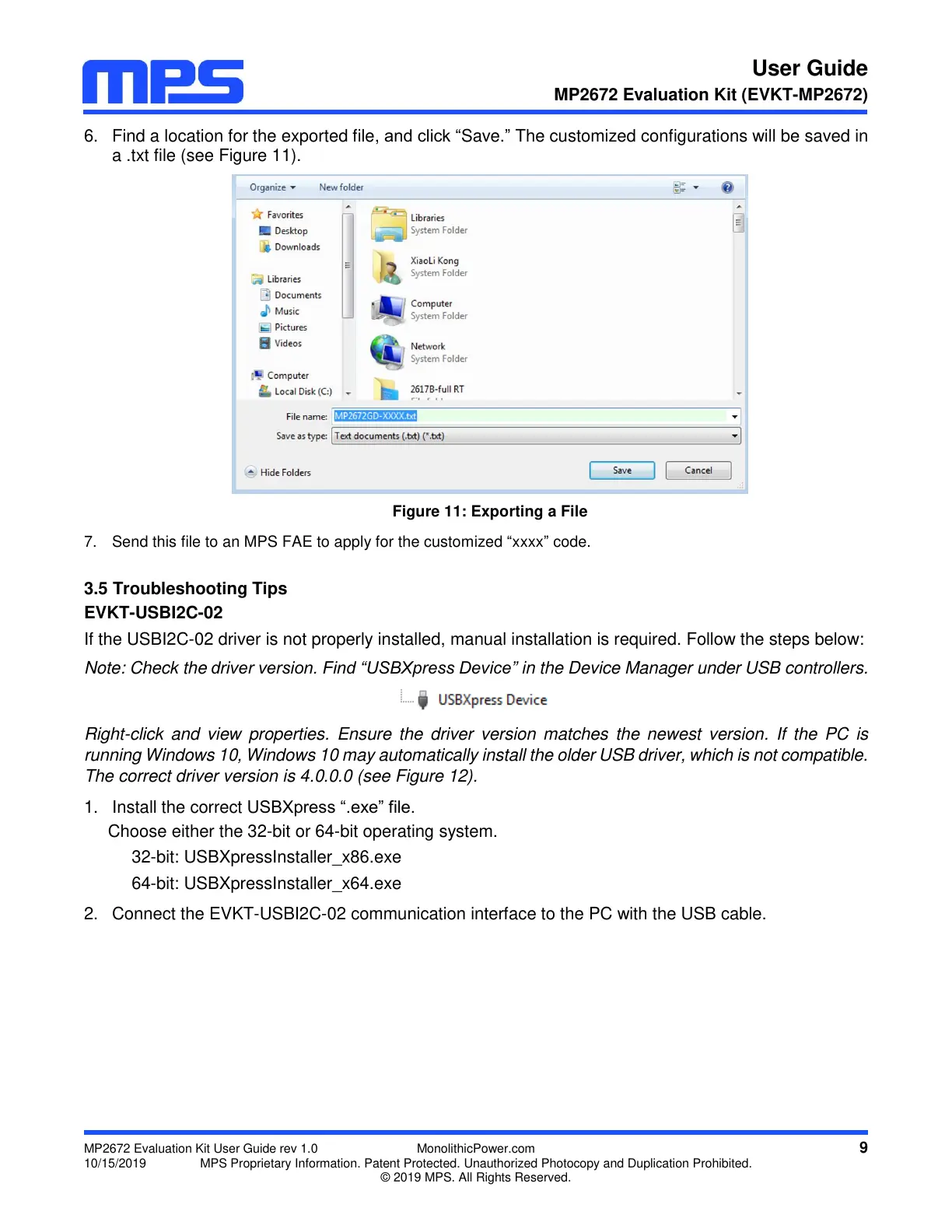

6. Find a location for the exported file, and click “Save.” The customized configurations will be saved in
a .txt file (see Figure 11).
Figure 11: Exporting a File
7. Send this file to an MPS FAE to apply for the customized “xxxx” code.
3.5 Troubleshooting Tips
EVKT-USBI2C-02
If the USBI2C-02 driver is not properly installed, manual installation is required. Follow the steps below:
Note: Check the driver version. Find “USBXpress Device” in the Device Manager under USB controllers.
Right-click and view properties. Ensure the driver version matches the newest version. If the PC is
running Windows 10, Windows 10 may automatically install the older USB driver, which is not compatible.
The correct driver version is 4.0.0.0 (see Figure 12).
1. Install the correct USBXpress “.exe” file.
Choose either the 32-bit or 64-bit operating system.
32-bit: USBXpressInstaller_x86.exe
64-bit: USBXpressInstaller_x64.exe
2. Connect the EVKT-USBI2C-02 communication interface to the PC with the USB cable.
