Overview
Introduction
The EVKT-MP2672 is an evaluation kit for the MP2672. This board is designed for MP2672, which is
controlled by the GUI to enable the charging and discharging of the 2-cell battery. Its layout
accommodates most commonly used components. The default function of this board is preset for host-
mode and the battery regulation voltage is preset to 8.4V for the 2-cell Li-Ion battery.
Kit Contents
EVKT-MP2672 kit contents (items below can be ordered separately).
#
Part Number
Item
Quantity
1
EV2672-D-01A
MP2672 evaluation board
1
2
EVKT-USBI2C-02-
BAG
Includes one USB to I
2
C USB communication interface, one
USB cable, and one ribbon cable
1

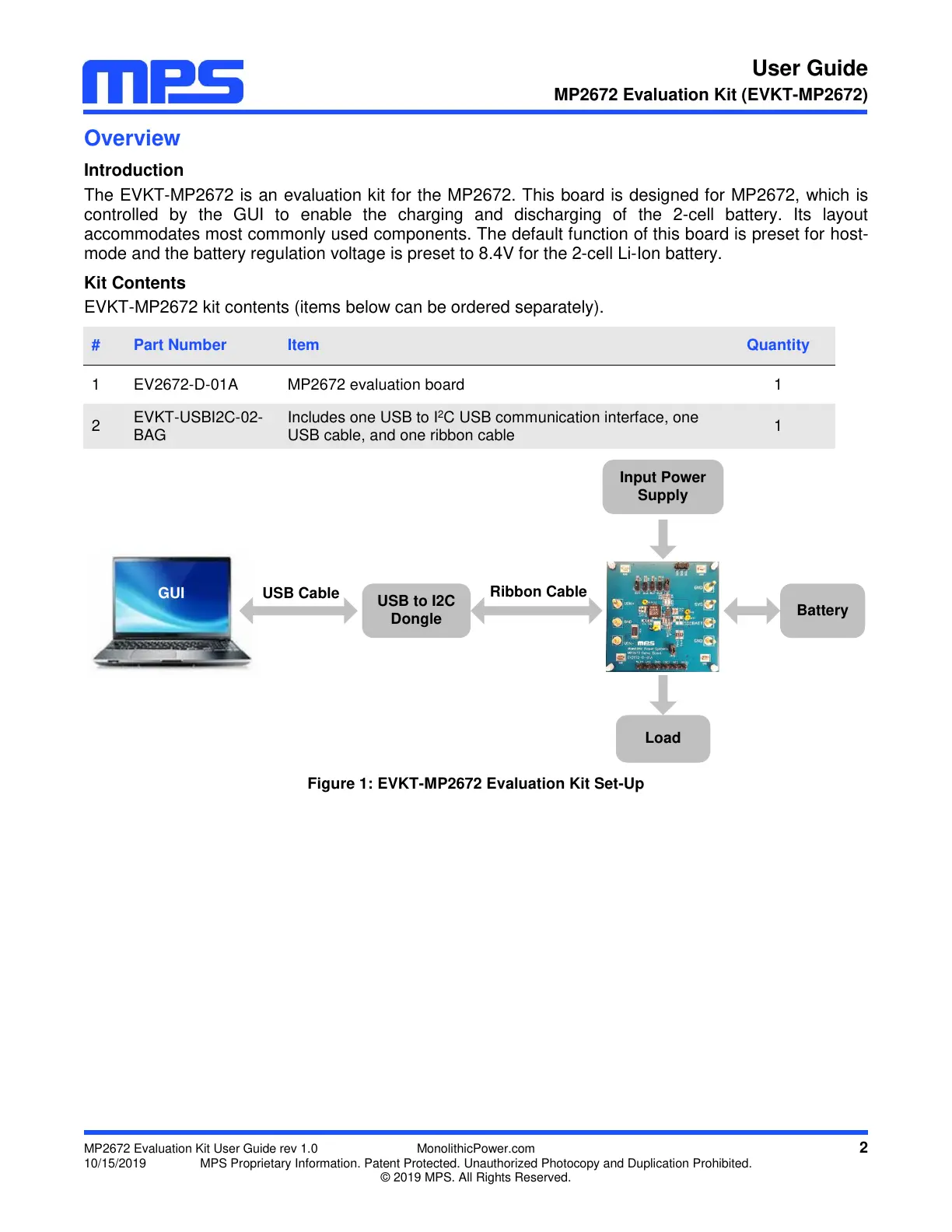

Figure 1: EVKT-MP2672 Evaluation Kit Set-Up
USB to I2C
Dongle
USB Cable
Ribbon Cable
Input Power
Supply
Load
GUI
Battery
