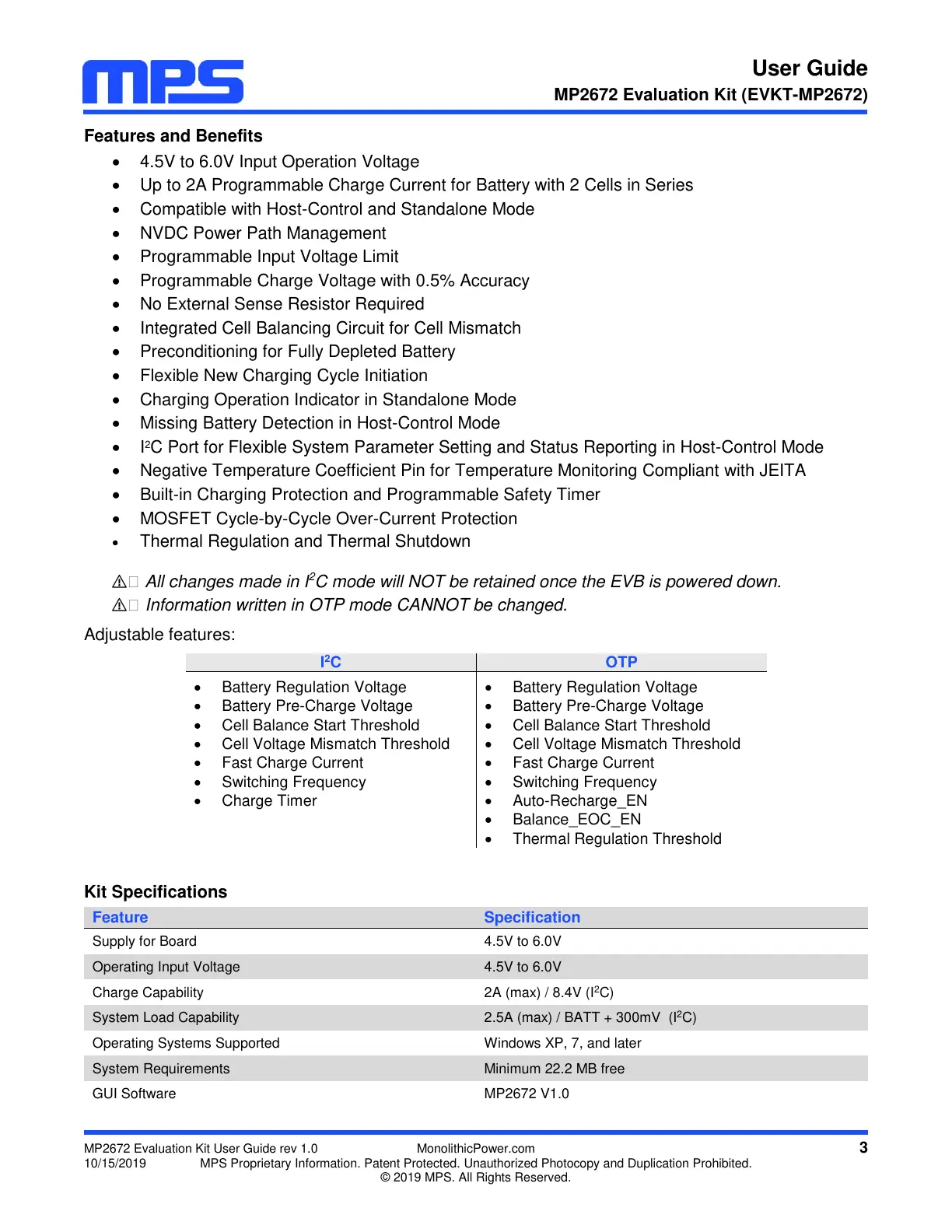

Features and Benefits
 4.5V to 6.0V Input Operation Voltage
 Up to 2A Programmable Charge Current for Battery with 2 Cells in Series
 Compatible with Host-Control and Standalone Mode
 NVDC Power Path Management
 Programmable Input Voltage Limit
 Programmable Charge Voltage with 0.5% Accuracy
 No External Sense Resistor Required
 Integrated Cell Balancing Circuit for Cell Mismatch
 Preconditioning for Fully Depleted Battery
 Flexible New Charging Cycle Initiation
 Charging Operation Indicator in Standalone Mode
 Missing Battery Detection in Host-Control Mode
 I
2
C Port for Flexible System Parameter Setting and Status Reporting in Host-Control Mode
 Negative Temperature Coefficient Pin for Temperature Monitoring Compliant with JEITA
 Built-in Charging Protection and Programmable Safety Timer
 MOSFET Cycle-by-Cycle Over-Current Protection
 Thermal Regulation and Thermal Shutdown
⚠️ All changes made in I
2
C mode will NOT be retained once the EVB is powered down.
⚠️ Information written in OTP mode CANNOT be changed.
Adjustable features:
I
2
C
OTP
 Battery Regulation Voltage
 Battery Pre-Charge Voltage
 Cell Balance Start Threshold
 Cell Voltage Mismatch Threshold
 Fast Charge Current
 Switching Frequency
 Charge Timer
 Battery Regulation Voltage
 Battery Pre-Charge Voltage
 Cell Balance Start Threshold
 Cell Voltage Mismatch Threshold
 Fast Charge Current
 Switching Frequency
 Auto-Recharge_EN
 Balance_EOC_EN
 Thermal Regulation Threshold
Kit Specifications
Feature
Specification
Supply for Board
4.5V to 6.0V
Operating Input Voltage
4.5V to 6.0V
Charge Capability
2A (max) / 8.4V (I
2
C)
System Load Capability
2.5A (max) / BATT + 300mV (I
2
C)
Operating Systems Supported
Windows XP, 7, and later
System Requirements
Minimum 22.2 MB free
GUI Software
MP2672 V1.0
