mr. steam MS-65T Installation Operation & Maintenance

Mr
Steam
®
Installation, Operation & Maintenance Manual

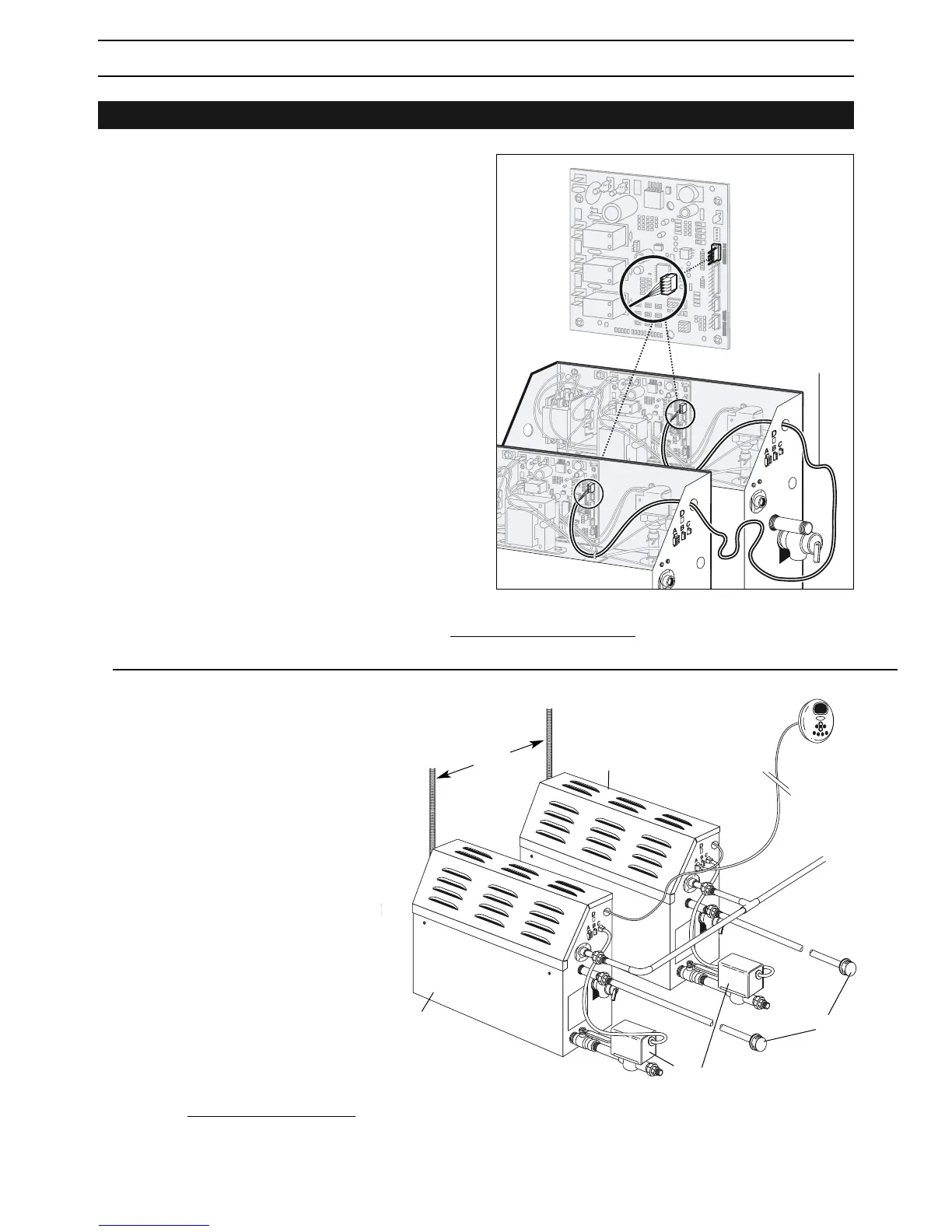

MS Super 4T, 5T, 6T Typical Configuration
3
Diagram B
Assembled and Installed
MS Super 4T, 5T, 6T
Typical Installation shown
with Optional AutoFlush
Diagram A
Printed Circuit Board
Component shown
enlarged for illustrative
purpose.
Interconnecting
Cable PN: 103904
Primary Unit
Secondary Unit
TEMPO/PLUS
Control
Optional AutoFlush, see
AutoFlush Installation pg. 11
Provide unions as required to facilitate installation
and disconnection of piping
Steam Heads
NOTE: For illustrative purposes only. Consult with qualified
designer, architiect or contractor for steam room construction details.
NOTE: For illustrative purposes only.
Units shown prior to plumbing and installation.
Installation Instructions for Models:
MS-Super 4T, MS-Super 5T
and MS-Super 6T
1. Install each steam generator as in a single installation.
Install generators as close as possible to each other,
not exceeding 12 feet.The interconnecting cable length
is 12 feet.
2. IMPORTANT: Power must be disconnected at the
main electrical supply. Remove steam generator covers.
Retain screws and cover for reuse.
3. Connect the TEMPO/PLUS control to either unit per
instructions supplied with the TEMPO/PLUS control.
4. Remove one knock-out on each generator as shown.
Insert the ends of interconnecting cable provided
(PN 103904) through the knock-outs as shown in
Diagram A. Connect each end to the printed circuit
board connector labeled "TANDEM" as shown.
5. Connect separate plumbing and power supplies for
each unit. Replace covers with cover screws.
Power
Supply
