5 Installation and commissioning
31BA5831400-00 EN
1. Immerse the temperature sensor of the pointer thermometer and a cali-
brated glass thermometer in the liquid bath for approx. 15minutes.
2. Compare the measured temperature values of the pointer thermometer
and glass thermometer with each other.
ð If the measured temperature values deviate from each other significantly
(maximum permitted deviation ±3°C), contact the service department of
Maschinenfabrik Reinhausen GmbH [►Section 2.3, Page 13].
5.3 Mounting the pointer thermometer
5.3.1 Attaching the pointer thermometer to the transformer
When attaching the thermometer to the transformer, note the following infor-
mation:
▪ Ensure that the pointer thermometer is mounted vertically.

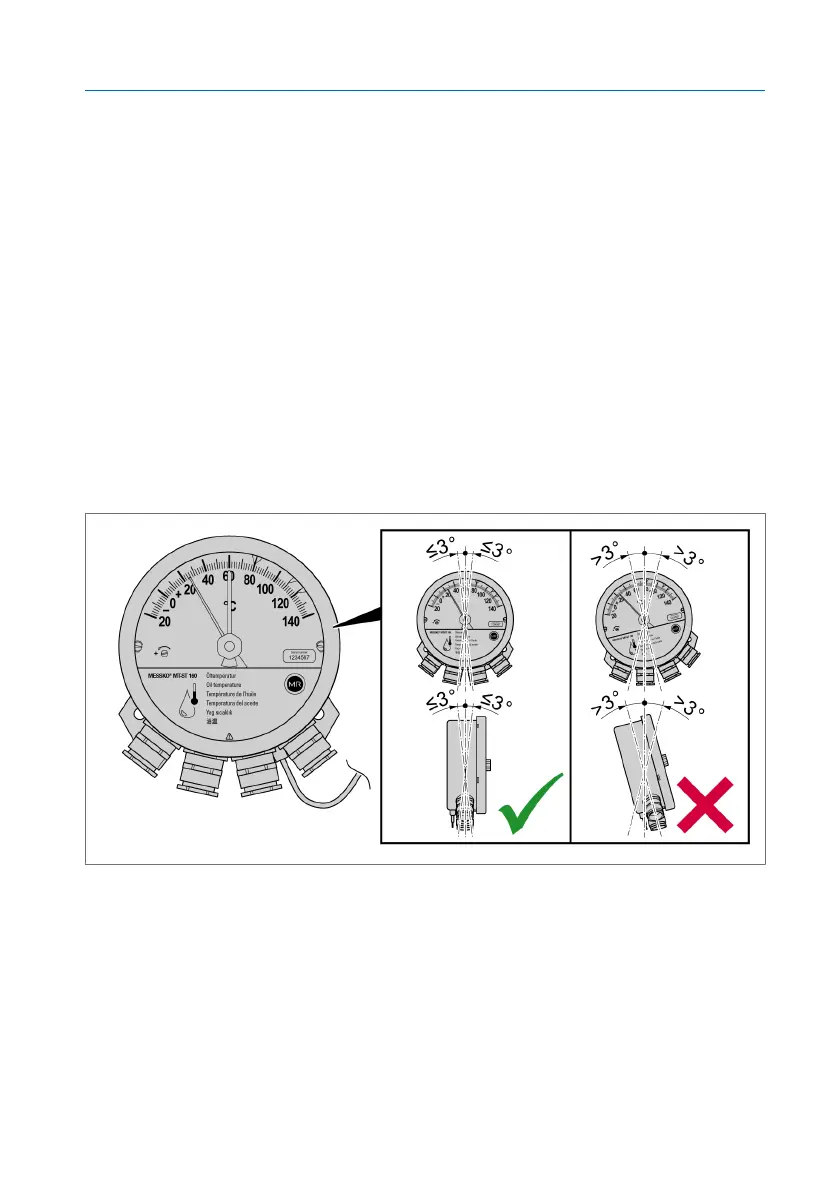

Figure10: Mounting position
▪ Ensure that the pointer thermometer is not subjected to any vibrations at
the installation location.
▪ Comply with EMC standards [►Section 5.4.1.1, Page 40].
▪ Observe the dimensions in the chapter Technical data [►Section 9, Page
79].
