MR MESSKO MT-ST Compact RM User Manual

9 Technical data
80 BA5831400-00 EN
Dimensions and weight
Compact housing Ø 173mm [Ø 6.81"]; depth 98mm [3.86"]
Compact RM housing Ø173mm [Ø6.81"]; depth 71mm [2.80"]
Weight Approx. 2.5kg (for 6m capillary line)
Analog sensor (TT version/
optional)
Sensor Pressure measurement cell
Supply voltage DC: 12...30V unregulated, max. 10% residual rip-
ple, protected against polarity reversal
Output signal 4…20mA; 2-conductor wiring
Max. load resistance e.g. 750Ω at U
b
= 24VDC
Repetition accuracy ≤±0.1% from the end value

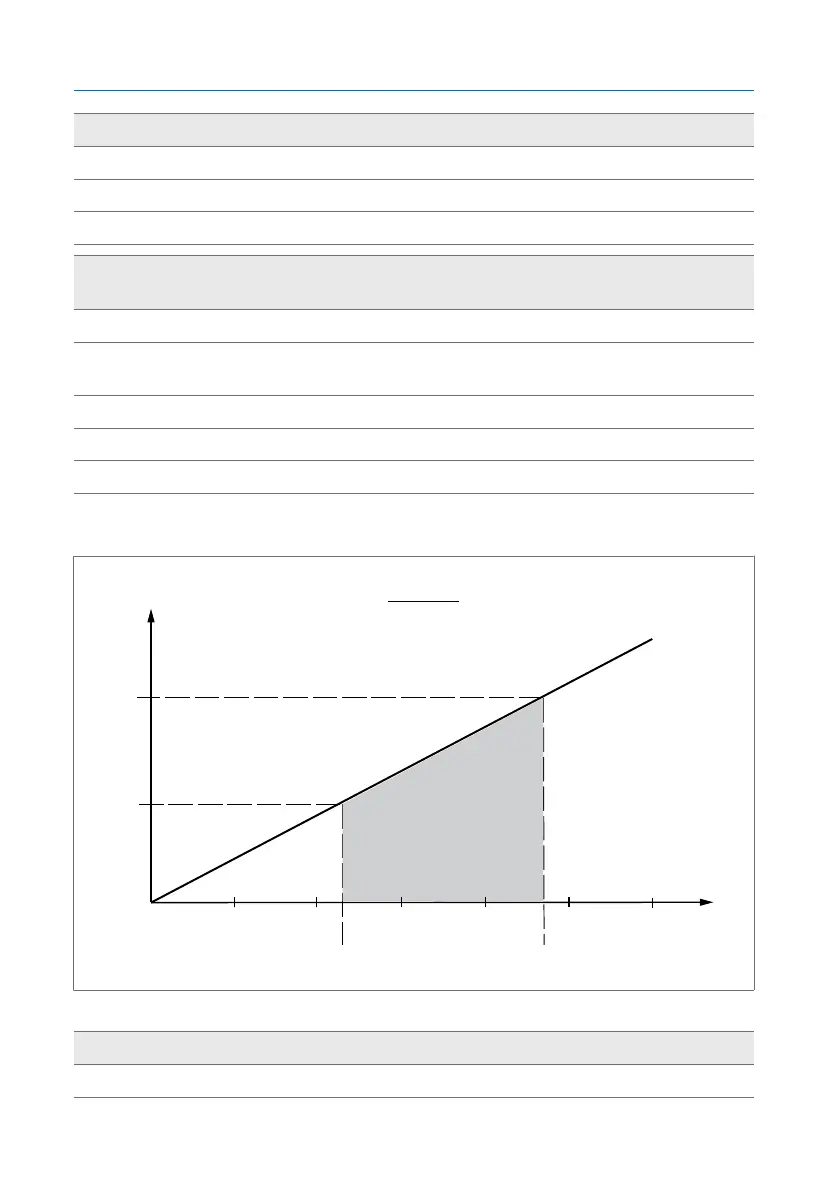

Maximum load resistance
1.5Pt
0.7Pt
Arial 9Pt
10
20
30
40
50
0.1 0.2 0.5 1 2 5 10 20A
U
I
750
150
50
10 2515 20 305
12 24
R [Ω]
L
B
U [V]
Operating range
R [Ω]
L
=
U
B
-9[V]
20[mA]
Figure61: Maximum load resistance
Connection terminals
Connection terminals 1.5...2.5mm
2
, 16...12 AWG (rigid or flexible)
