3 Product description
Maschinenfabrik Reinhausen GmbH 202020 5993419/02 ENVACUTAP
®
VMS
®
Rear view

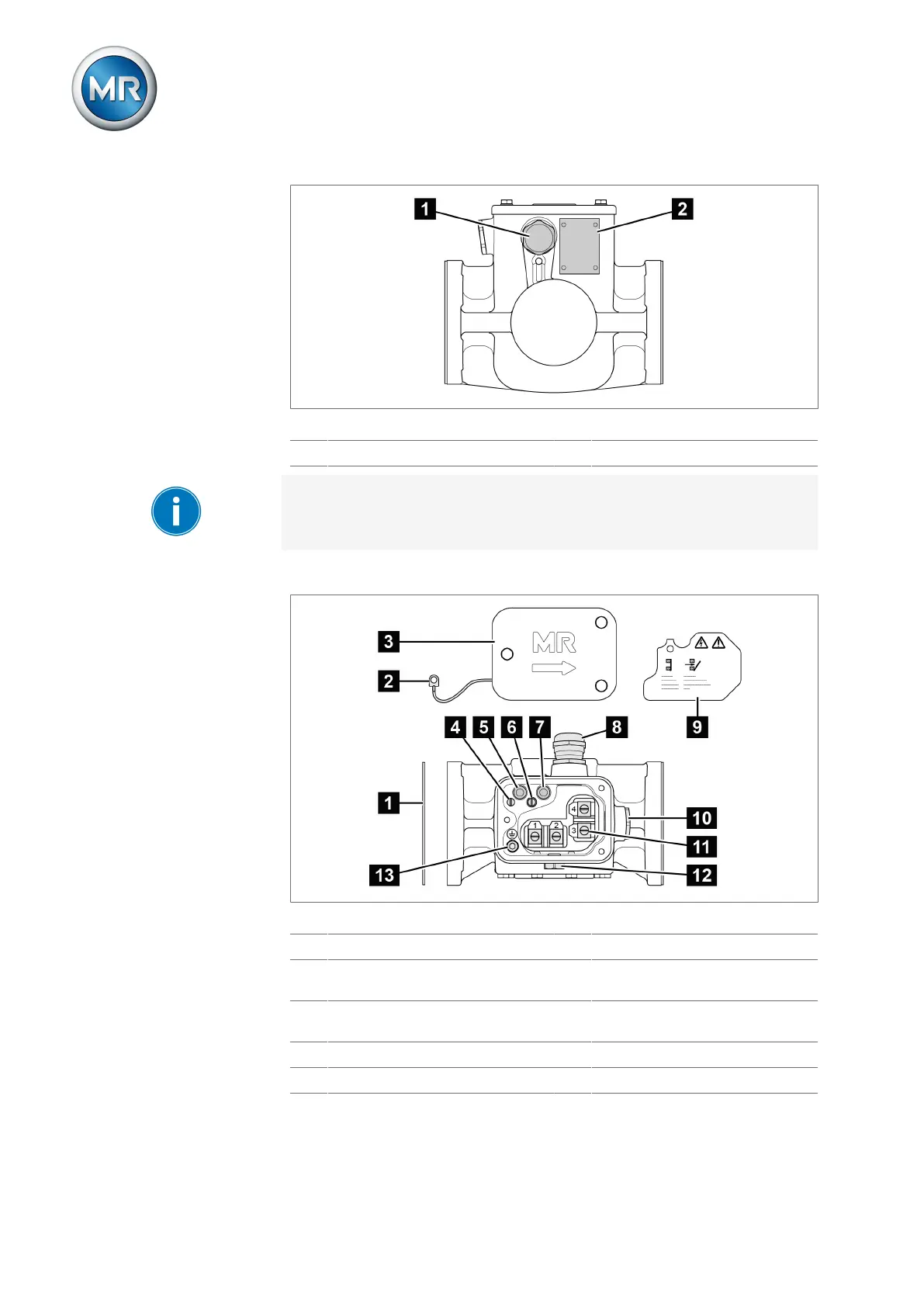

Figure7: Protective relay RS 2001
1 Dummy plug 2 Nameplate
The protective relay RS 2001/R has an extra inspection window on the rear.
View from above
Figure8: Protective relay RS 2001
1 Gasket 2 Potential tie-in
3 Terminal box cover 4 Slotted head screw for potential
tie-in
5 OPERATION (reset) test button 6 Slotted head screw for protective
cover
7 OFF (test tripping) test button 8 Cable gland
9 Protective cover 10 Dummy plug
