3 Product description
Maschinenfabrik Reinhausen GmbH 2020 235993419/02 EN VACUTAP
®
VMS
®
The housing and the cover cap of the pressure monitoring device consist of
lightweight, corrosion-resistant metal.

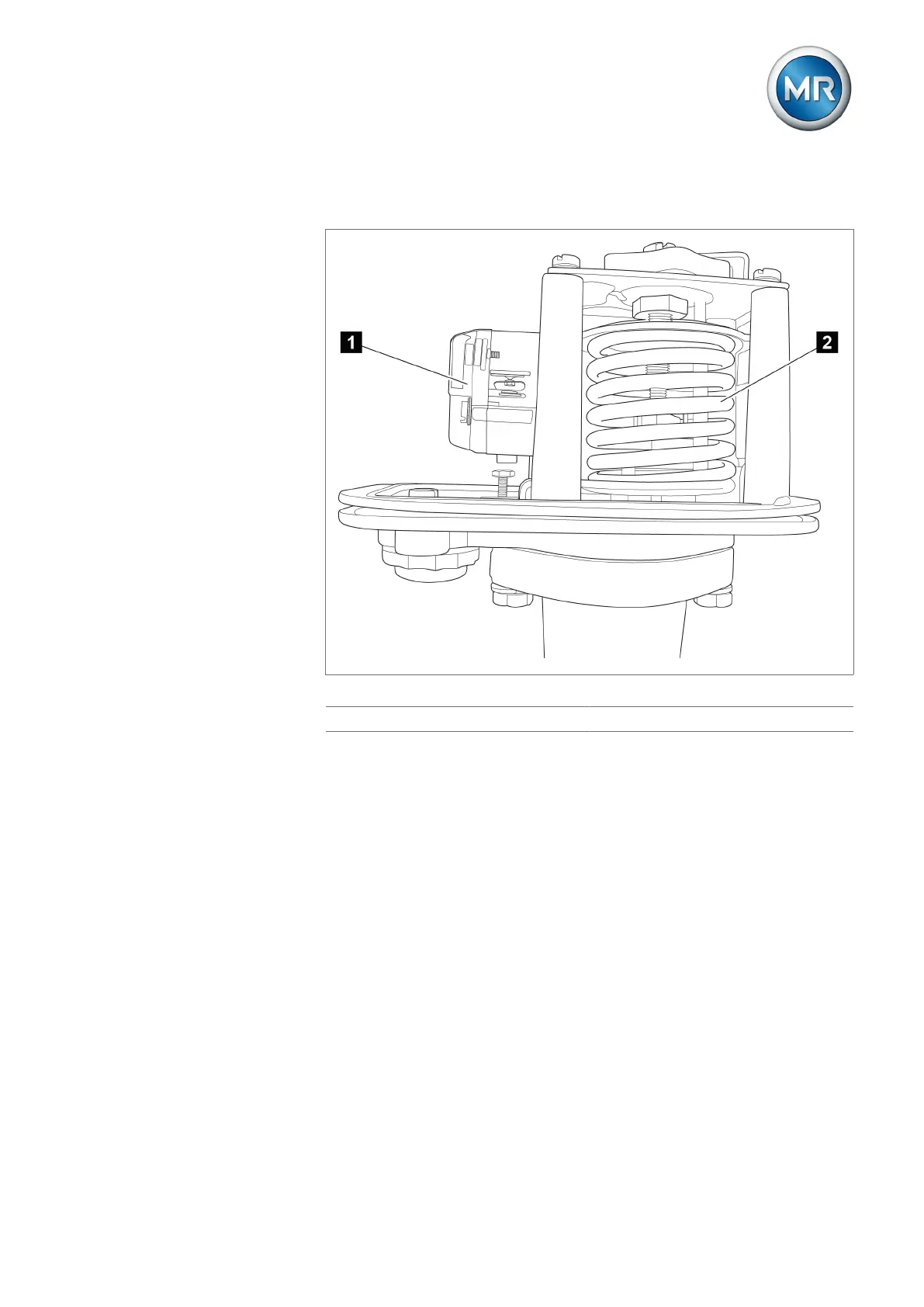

Figure10: Snap-action switch and pressure measuring element
1 Snap-action switch 2 Pressure measuring element
