3 Product description
Maschinenfabrik Reinhausen GmbH 2020 295993419/02 EN VACUTAP
®
VMS
®
3.2.2.3 Drive shaft with cardan joint and without insulator

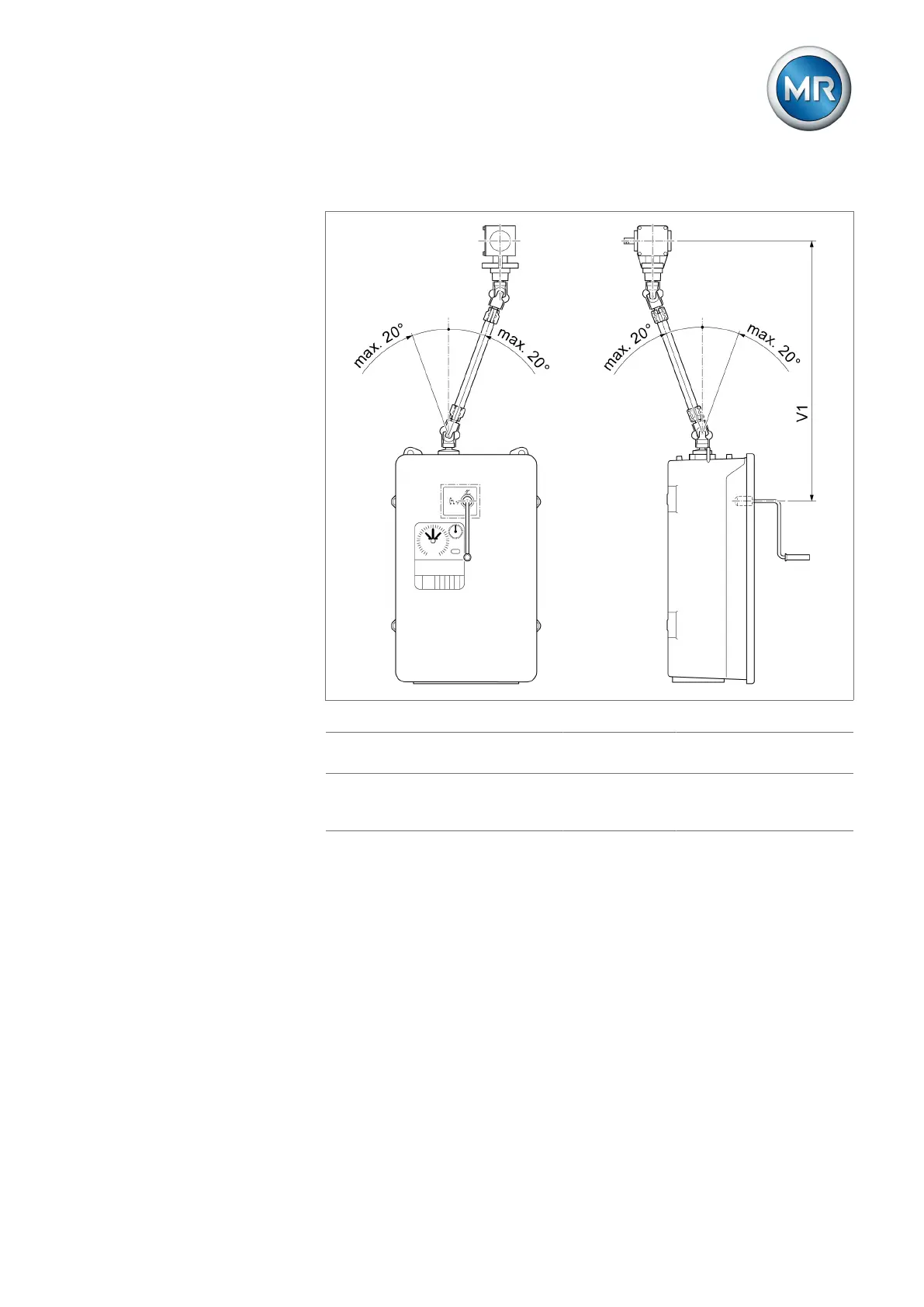

Figure15: Drive shaft with cardan joint and without insulator (= special model)
Configuration V 1 min [mm] Intermediate bearing for
[mm]
Middle of hand crank – middle of
bevel gear (maximum permissible
axial offset 20°)
798 V 1 > 2564
