It is prohibited to place the charging
pile inside the car when charging.

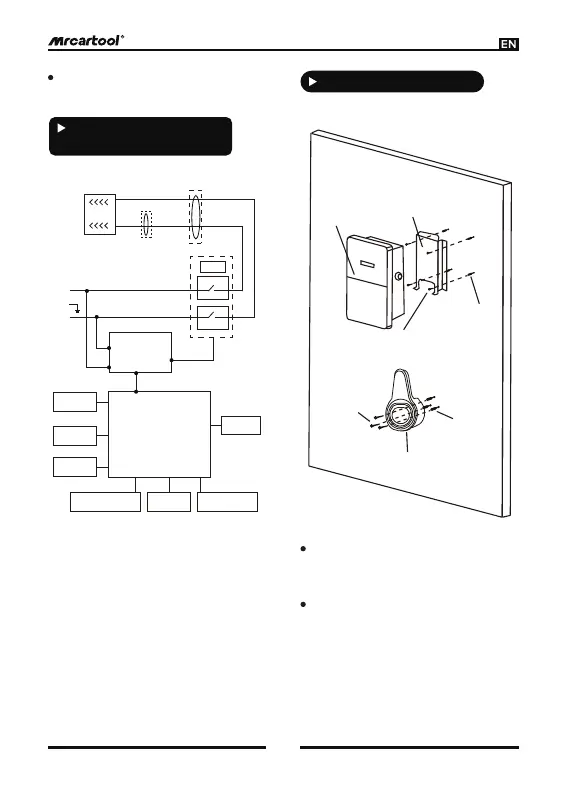

Electrical Schematic
Diagram
L
220V
PE
N
Card
reader
Marquee
Voltage
acquisition
E-stop
Connection check
control guide
Main control
board
Power supply
module
AC/DC
Current
Detection
Leakage current
detection
Output
relay
K1/K2
Zero sequence
current transformer
Current
Transformer
EV charger
3
Column installation
Step 1: Make a cement base according
to the drawings, and install expansion
screws (M8*80).
Step 2: Fix the column on the cement
foundation
(Note: first pass the cable through the
column, then fix it).
Installation Diagram
Wall-mount
Charging
pile
Wall-mounted
backboard
4*plastic
expansion
tubes of φ6
3*plastic
expansion
tubes of φ6
Hook
4*stainless steel
self-tapping screws
3*stainless
steel
self-tapping
screws
