Page 12mrcool.com
Indoor Unit Installation
Wall
Indoor Outdoor
Fig. 4.2
0.2 - 0.3 in
(5 - 7 mm)

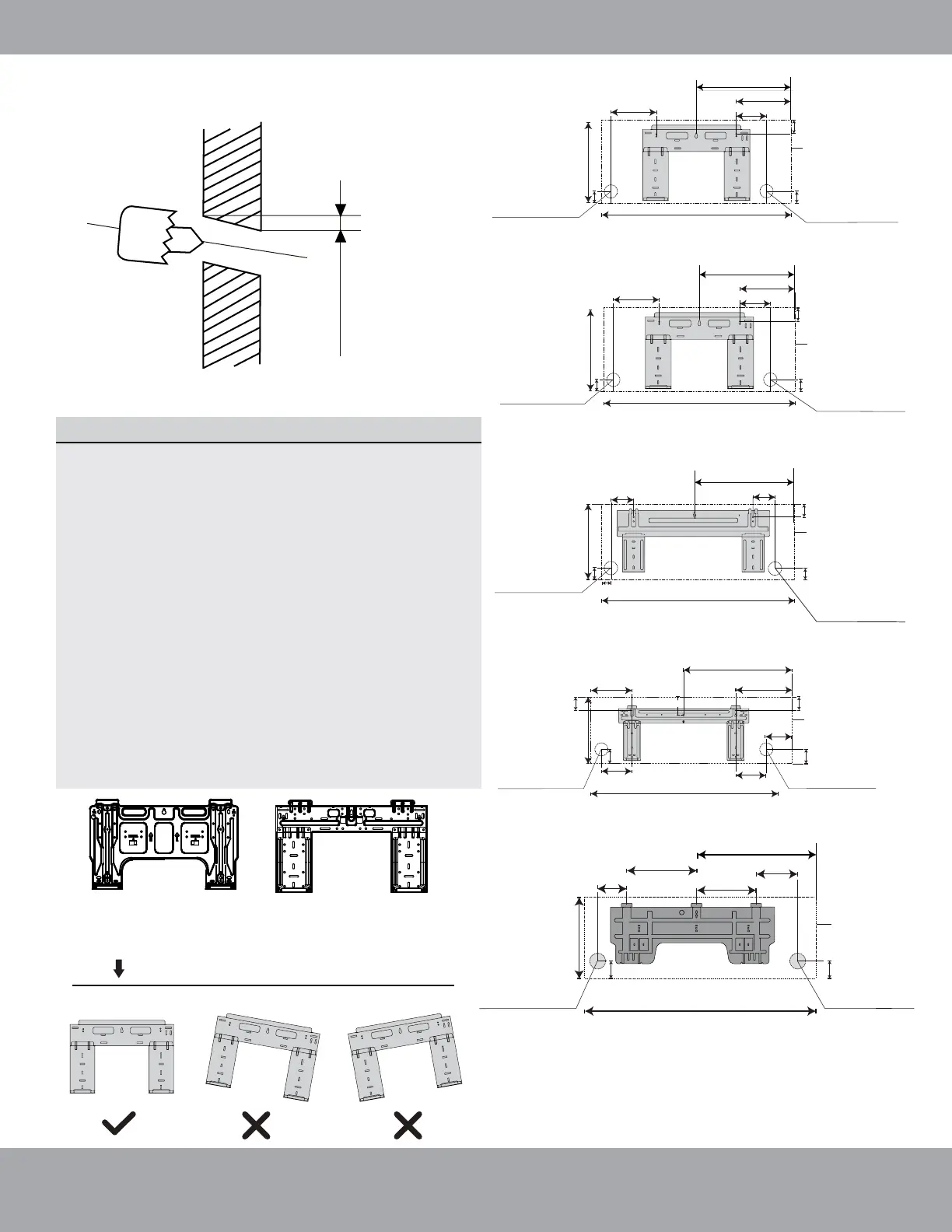

MOUNTING PLATE DIMENSIONS
Different models have different mounting plates.
For the different customization requirements,
the shape of the mounting plate may be slightly
different. However, the installation dimensions
are the same for the same size of indoor unit.
See the illustrations for Type A and Type B below
for an example. In order to ensure that you have
ample room to mount the indoor unit, the
diagrams to the right show different types of
mounting plates along with the following
dimensions:
• Height & Width of mounting plate
• Height & Width of indoor unit relative to
plate
• Recommended position of wall hole (both
to the left and right of mounting plate)
• Relative distances between screw holes
Fig. 4.3
Correct orientation of Mounting Plate
4 in (101 mm)
7.05 in (179 mm)
5.35 in (136 mm)
1.45 in (37 mm)
11.4 in (290 mm)
1.95 in (49 mm)
Left rear wall
hole 2.5 in (65 mm)
Right rear wall
hole 2.5 in (65 mm)
Indoor unit outline
28.45 in (722 mm)
1.95 in (49 mm)
7.55 in (192 mm)
9.15 in (232 mm)
16.8 in (426 mm)
5.05 in (128 mm)
1.7 in (43 mm)
11.7 in (297 mm)
Left rear wall
hole 2.5 in (65 mm)
Right rear wall
hole 2.5 in (65 mm)
Indoor unit outline
31.6 in (802 mm)
1.7 in (43 mm)
1.7 in (43 mm)
5.65 in (144 mm)
2.3 in (58 mm)
12.55 in (319 mm)
2.25 in (57 mm)
1.55 in (40 mm)
Left rear wall
hole 2.5 in (65 mm)
Right rear wall
hole 2.5 in (65 mm)
38 in (965 mm)
5.45 in (138 mm)
1.35 in (34 mm)
Indoor unit outline
8.6 in (219 mm)
21.77 in (553 mm)
11.8 in (300 mm)
13.2 in (335 mm)
Left rear wall
hole 3.5 in (76.2 mm)
Right rear wall
hole 3.5 in (76.2 mm)
42.5 in (1080 mm)
2.1 in
(53.5 mm)
1.85in (47mm)
3 in (76 mm)
2.1 in (53.5 mm)
1.85 in (47 mm)
5.85 in
(148.7 mm)
5.95 in (151 mm)
6.85 in (174.3 mm)
Indoor unit outline
20.37 in (517.4 mm)
13.7 in (348.4 mm)
Series 12K Models
Series 9K Models
Series 18K Models
Series 24K Models
6.8 in (172 mm)
362mm (14.25in)
Left rear wall
hole 3.54 in (90 mm)
Right rear wall
hole 3.54 in (90 mm)
49.55 in (1259 mm)
Indoor unit outline
2.05 in (52 mm)
15.3 in (389 mm)
13.05 in (332 mm)
10.1 in (257 mm)
25.3 in (643.6 mm)
2.05 in (52 mm)
Series 36K Models
Type A
Type B
