 Outdoor Unit Disassembly 30 

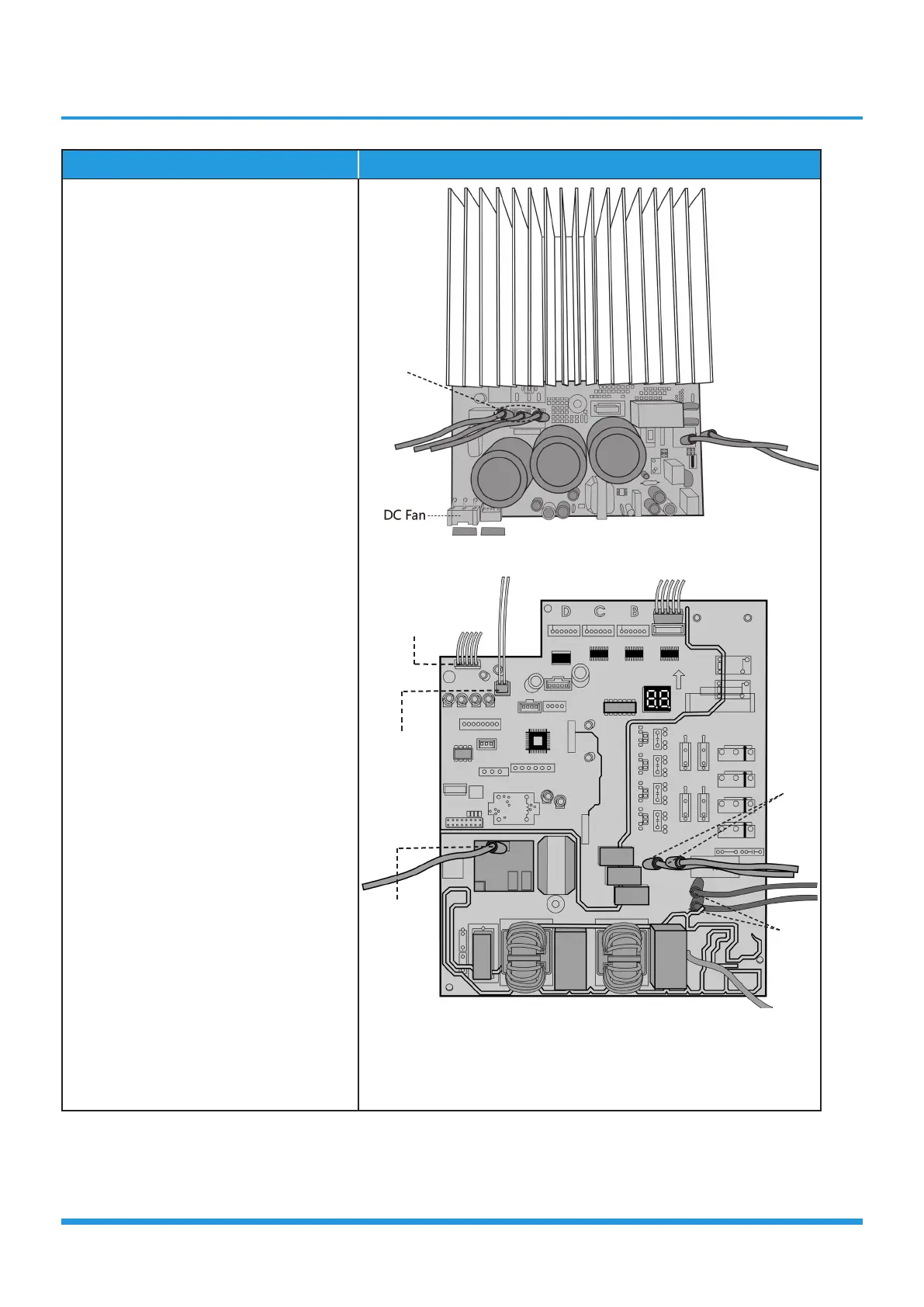

Procedure Illustration
3) Disconnect the connector for outdoor
DC fan from the electronic control
board (see CJ_Multi-PCB_002-3).
4) Remove the connector for the
compressor (see CJ_Multi-
PCB_002-4).
5) Pull out the two blue wires connected
with the four way valve (see CJ_Multi-
PCB_002-4).
6) Pull out connectors of the condenser
coil temp. sensor(T3),outdoor ambient
temp. sensor(T4) and discharge temp.
sensor(TP) (see CJ_Multi-PCB_002-4).
7) Disconnect the electronic expansion
valve wire (see CJ_Multi-PCB_002-4).
8) Disconnect the communication
wire indoor PCB (see CJ_Multi-
PCB_002-4).
9) Disconnect the PFC inductor (see
CJ_Multi-PCB_002-4).
10) Then remove the electronic control box
(see CJ_Multi-PCB_002-4).
CJ_Multi-PCB_002-3
CJ_Multi-PCB_002-4
Note: This section is for reference only. Actual unit appearance may vary.
4-Way Valve
Reactor
T3/T4
TP
Terminal
Compressor
