MSA 3S - 7 Ordering Information; Exploded View

3S Full Face Mask – Positive Pressure
16
Ordering Information
GB
7 Ordering Information
7.1 Exploded View

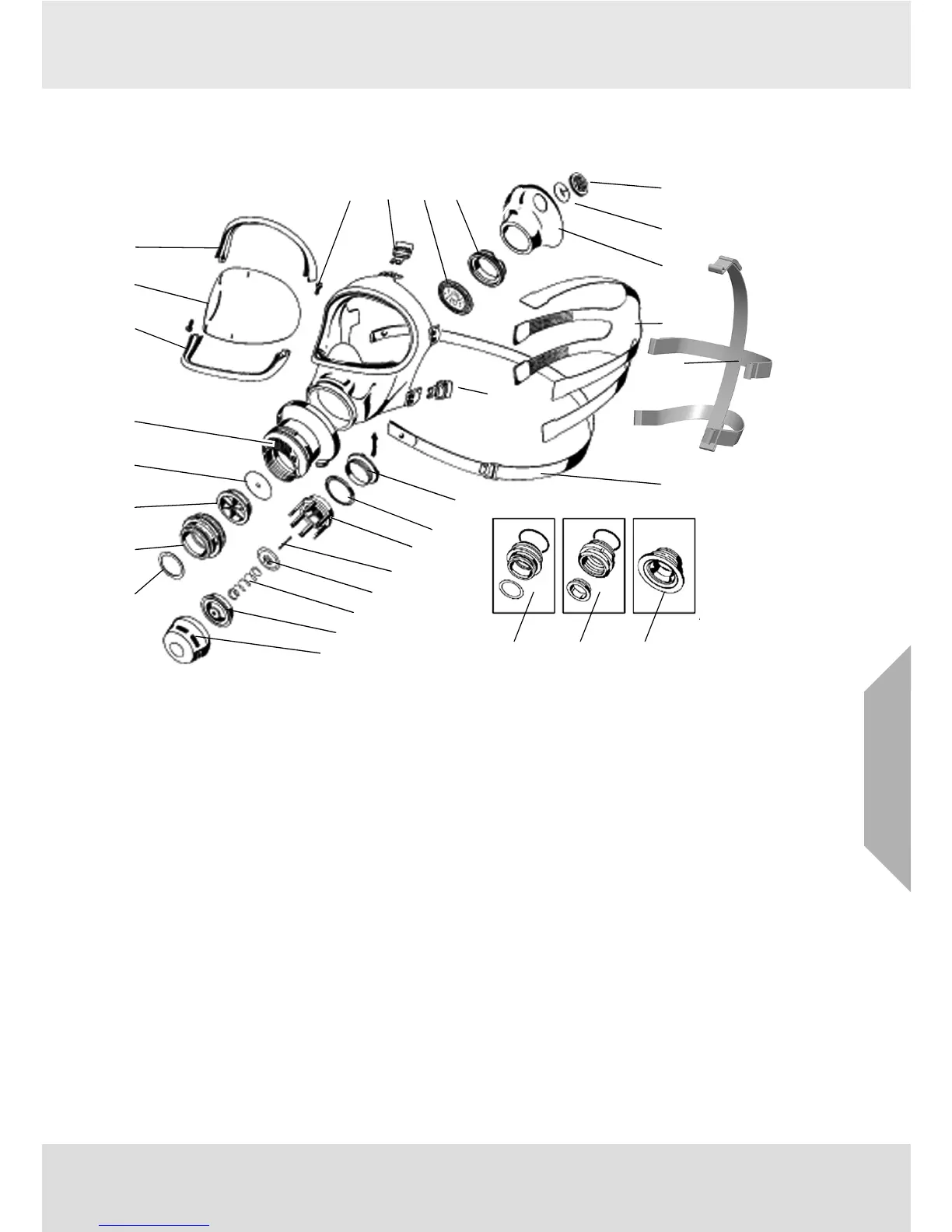

Fig. 4 Full face mask exploded view
1
2
3
25
4a
2322
15
14
13
11
10
9
8
5
7
6
24
12
17
16
18
20
19
21
27
4b
26
28
29
1 Nose cup valve seat 15 Plug-in connector
*)
2 Nose cup valve disc 16 Inhalation valve seat
3 Nose cup [without valves] 17 Inhalation valve disc
4a Rubber harness 18 Connector
4b Industrial harness 19 Lens ring
5 Carrying strap 20 Lens
6 Threaded ring 21 Lens ring
7 Slide ring 22 Screw for lens ring
8 Valve socket 23 Buckle with hook
9 Positioning pin 24 Speech diaphragm
10 Exhalation valve disc 25 Threaded ring
11 Valve spring 26 Buckle with hook and D-ring
12 Valve cap 27 3S-H-ESA series
13 Valve cover 28 3S-H-PF and –PS series
14 O-ring for plug-in connector
*)
29 3S-H-MaXX series
*)
only 3S-PS Full Face Mask
