Model 9010/9020 SIL

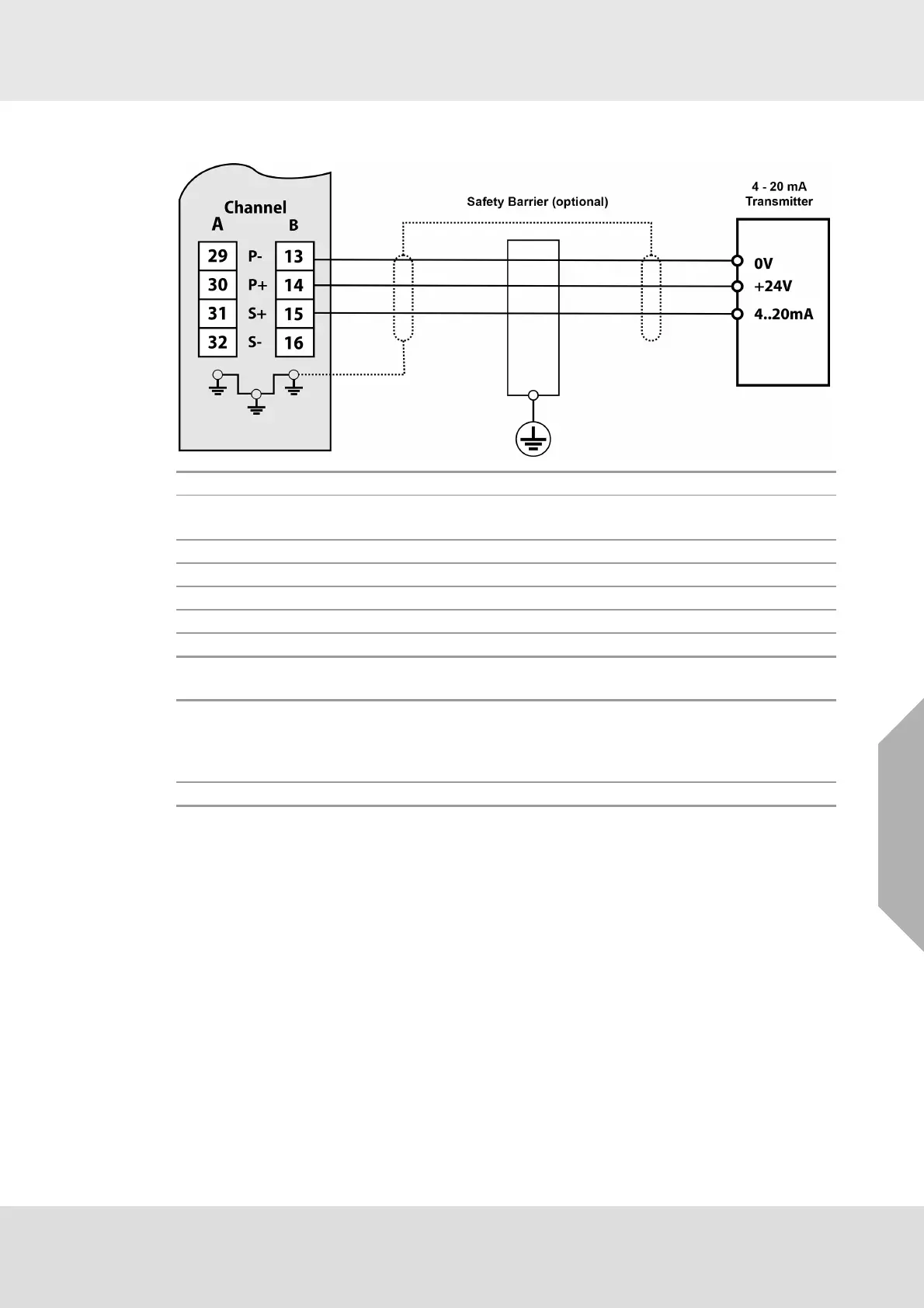

4-20 mA Transmitter (3 Wires)
Simulation Module: Order No. 10030262
Conditions for use: For further details see operation manual of the transmitter.
Supply Voltage 19 - 30 VDC
Supply current
max. 450 mA (9010)
max. 350 mA (9020)
Cable type 3 core, 80 % screened
Maximum Load Transmitter dependent
Maximum cable length Transmitter dependent
Cable diameter 9 ….17 mm
Cross section per wire allowed 0.75 - 2.5 mm
2
MSA recommended transmitters
PrimaX P, PrimaX IR, Ultima XE (3 wire), Ultima XIR,
Ultima MOS 5, Ultima MOS 5E, FlameGard 5 MSIR,
FlameGard 5 UV/IR, FlameGard 5 UV/IR-E,
UltraSonic Ex 5
Recommended safety barriers See manual of transmitter
