Use
ASV without warning device
8
GB
Donning the Device

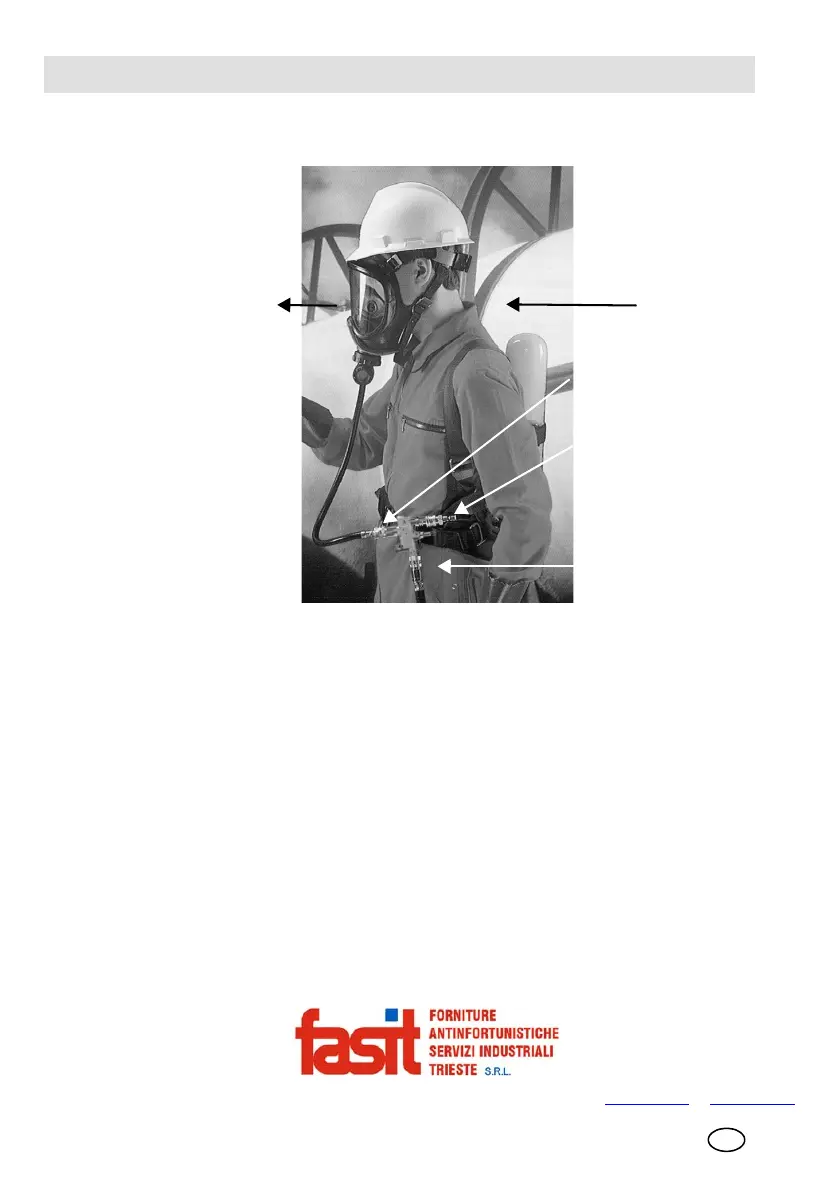

Fig. 2 Donning
The device is fastened to a waist belt or to the harness of the SCBA ( Fig. 2). The
device can be worn at the right or left side of the body. When worn on the left side,
the mounting support of the device must be adjusted so that the connection for the
SCBA points backwards, the connection of the LGDV points forward, and the con-
nection for the SCBA points straight down.
(1) Connect safety coupling of the SCBA to the short plug nipple ( Fig. 1).
(2) Connect plug nipple of LGDV to the lock coupling ( Fig. 1).
F Front B Back
1 Compressed air line breathing appara-
tus (long plug nipple)
3 Lung governed demand valve
(lock coupling)
2 SCBA (short plug nipple)
