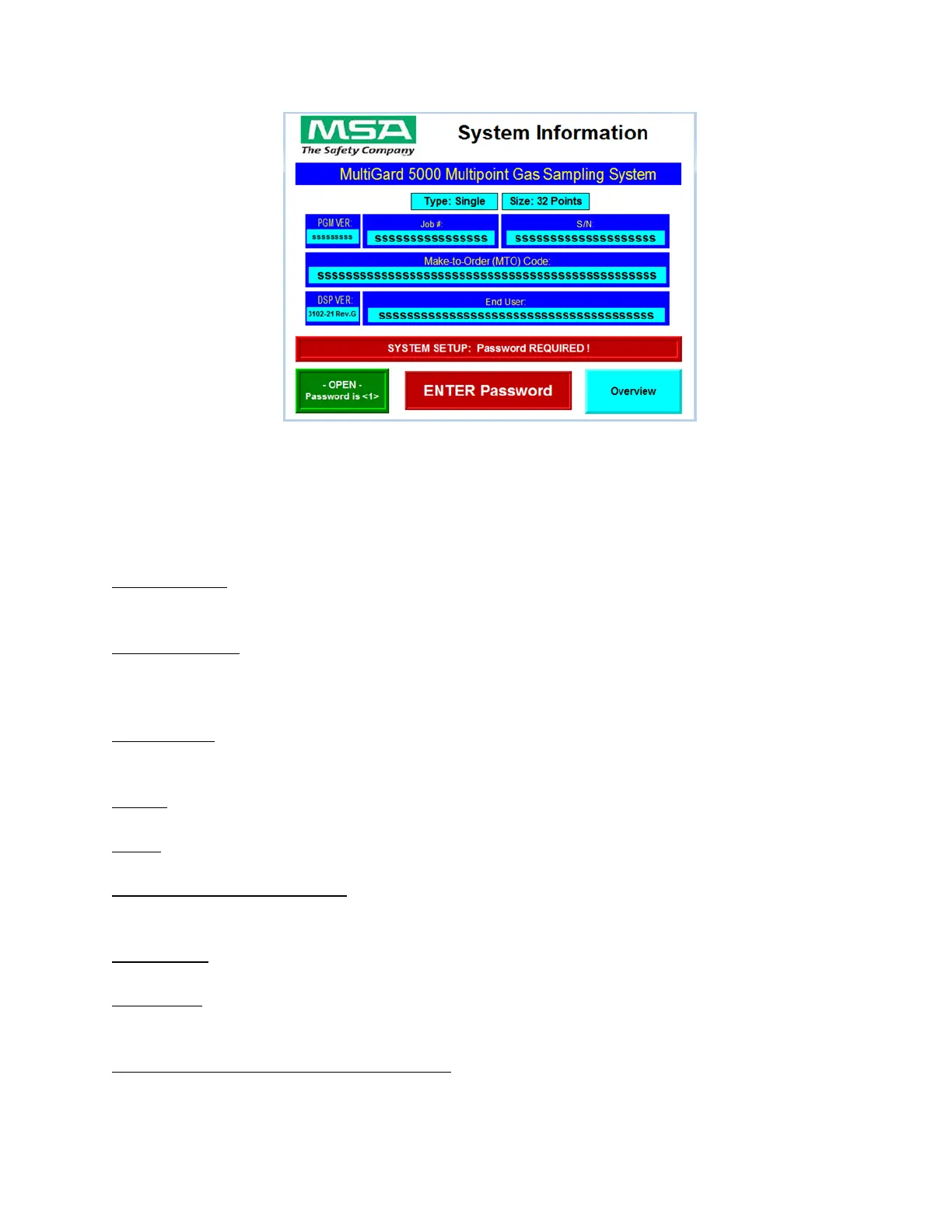

Figure 17: System Information
The About MultiGard 5000 and Security Check screen consists of the following:
"Type: Single" - This indicator shows whether the system is single or dual. When a dual system is
configured the indicator reads "Type: Dual". The system type is a MSA factory parameter.
"Size: 16 Points" - This indicator shows whether the system is set up for 8 or 16 [24 or 32] points.
When the 8 [24] point system is configured the indicator reads "Size: 8 [24] Points". The size is a
MSA factory parameter.
"PGM VER:" - This indicator shows the current Compactlogix processor program version that is
running this MultiGard 5000 unit.
"Job #" - This is the MSA internal job number for this customer order.
"S/N:" - This is the system serial number assigned by MSA.
"Make-to-Order (MTO) Code:" - This is the make-to-order code assigned by MSA. It describes the
major configuration and options included in this MultiGard 5000 unit.
"DSP VER:" - This is the version of screen application that in running in this MultiGard 5000 unit.
"End User:" - This is the end user's name; the company who has this MultiGard 5000 system
installed on site.
"SYSTEM SETUP: Password REQUIRED!: - This indicator notifies the operator that a password is
required to go into the system setup areas. If a failed attempt to enter a valid password has occurred
the message changes to "SYSTEM SETUP: RE-ENTER Password!".
