8.6 Pipe Mounting Kit
The PrimaX can be mounted vertically by fastening its back plane using two screws and washers.
Additionally, a pipe mount kit allowing the PrimaX to be fixed to pipes or poles is available as an acces-
sory.
The kit consists of:
• one universal mounting plate
• one retaining plate for pipes with a diameter of 20 – 30 mm
• one retaining plate for pipes with a diameter of 30 – 50 mm
• two tightening straps for pipes with a diameter of 50 – 150 mm.
NOTE: The Pipe mounting kit not included in the EC-Type Examination Certificate
BVS 10 ATEX E 009 X
The performance of the duct mounting kit depends on various parameters and has to be
checked before usage. The kit was not part of the compliance test.

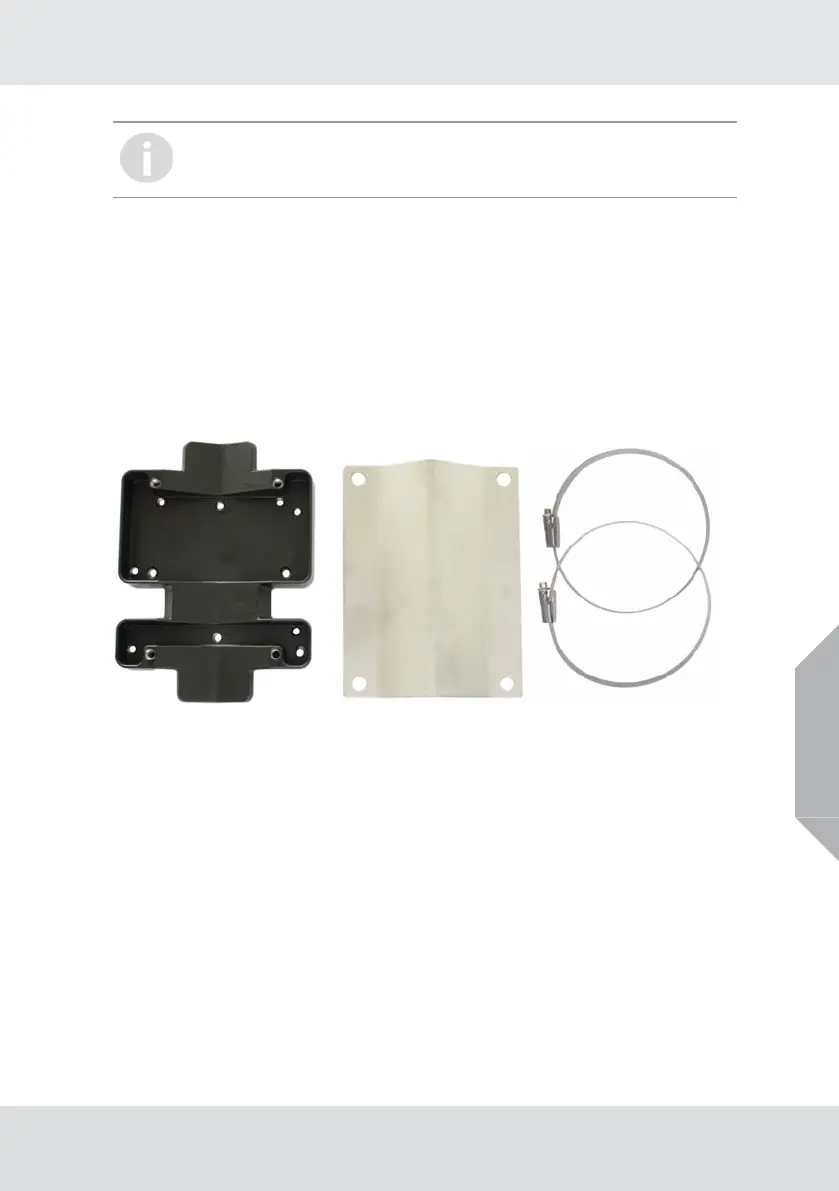

Fig. 18 Mounting plate
Fig. 19 Retaining plate
Fig. 20 Tightening straps
