10.5 Mechanical Installation
Dimensions

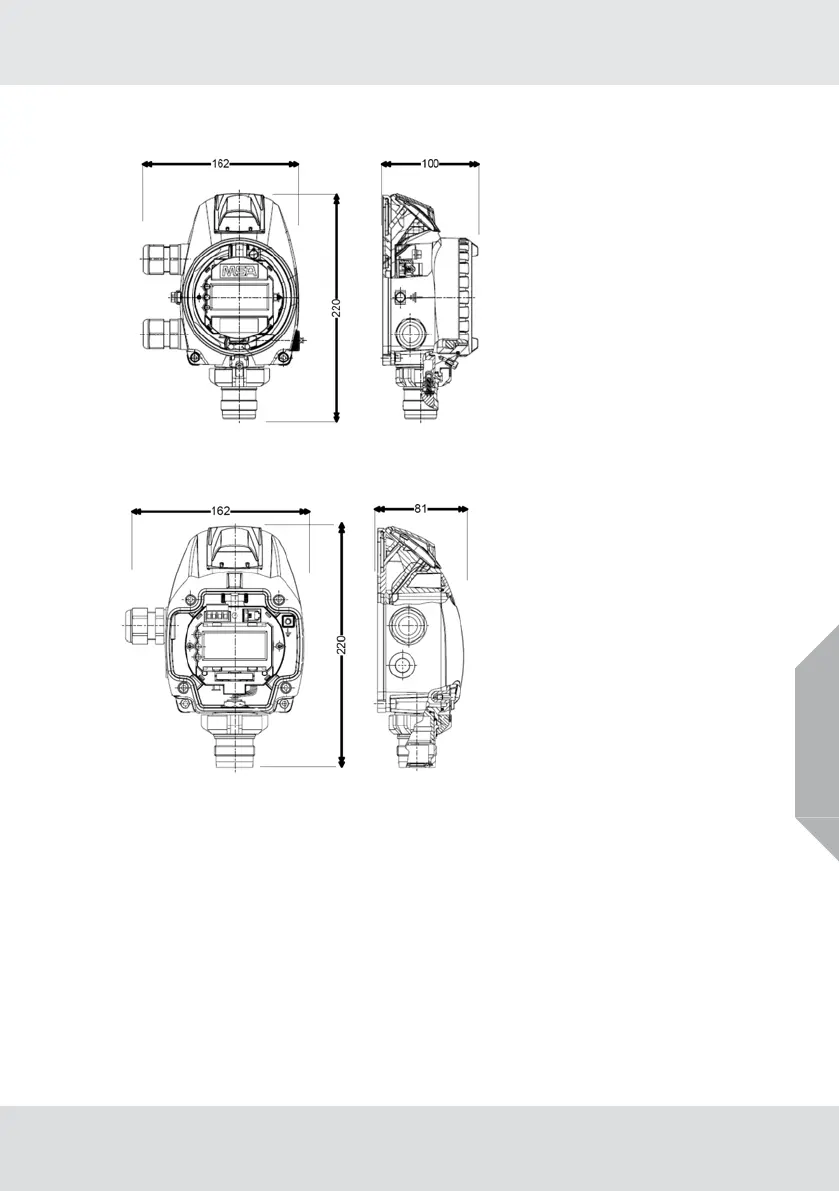

Fig. 25 Outline dimensions Prima X P
Fig. 26 Outline dimensions Prima X I
Cable gland
• M25 x 1,5;Torque 8 -12 Nm; only ATEX certified versions for gas and dust shall be used.
• NPT ¾"- 14; fixture with 2 layer PTFE sealing tape or according to the instructions of the NPT
supplier; when removed, new PTFE sealing has to be used after reinstalling; only ATEX certified
versions for gas and dust shall be used.
