MSA Workman® Tripod
13
US
2.4 Heads
2.5 Extension Legs
2.5.1 Detent Pins, Leg (3)
2.5.2 Strap (1)
The leg base strap is necessary to maintain the position of the Workman Tripod legs and to distribute
the applied loads during system use. Workman Tripods have attachments at the base of each lower
leg, through which the leg base strap is threaded. It is fully assembled when the end is passed through
all three attachments, connected through the cam buckle, and tightened.

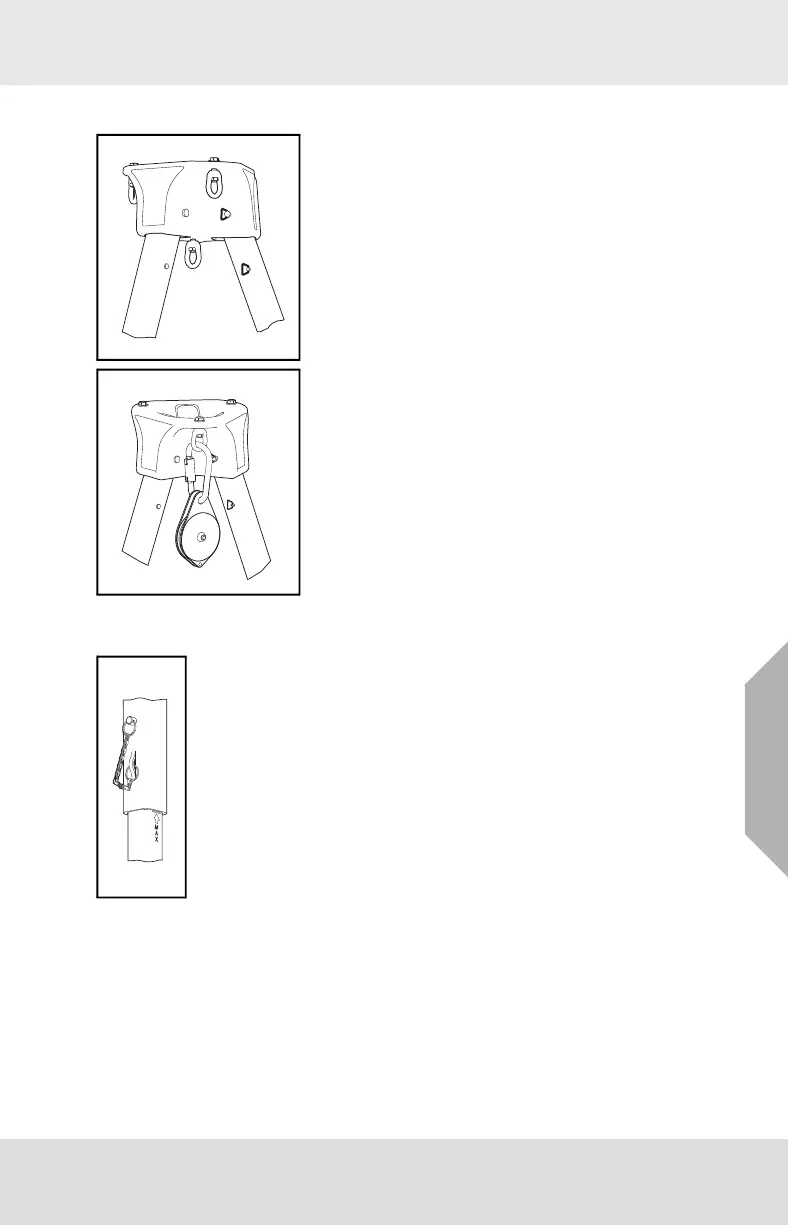

Central Swivel Eye
The central swivel eye is to be used for personal fall arrest
systems, such as vertical lifelines or the MSA Self-Retracting
lanyard. Refer to the separate User Instructions included with
these products for installation and use of each of these optional
components.
Side-Mount Swivel Eyes
The side-mount swivel eyes are used to attach accessories such
as the MSA Split-Mount Pulley, P/N 506222.
There is one Detent Pin in each extension leg. Each pin is inserted through the
selected holes in the upper and lower legs when the desired leg extension is achieved.
