MSA Workman® Tripod
20
(4) Optional components to be attached to the Workman
Tripod Head, such as the Split-Mount Pulley, should be
assembled to the Workman Tripod Head at this time.
Follow the appropriate user instructions for each
optional component that is to be connected to the
Workman Tripod.

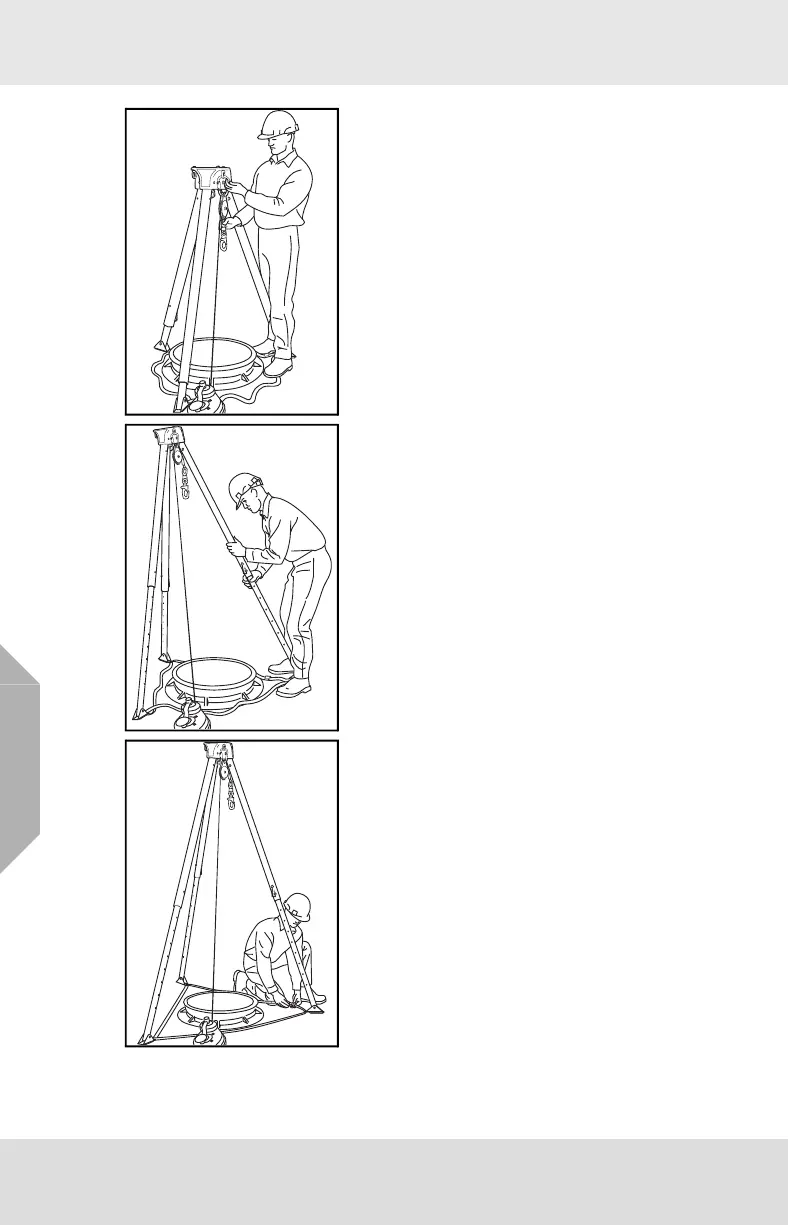

(5) Raise the Workman Tripod one leg at a time by pulling
the pin (attached to the upper leg section), incrementally
sliding out the lower leg section, and repinning. Repeat
for each leg until the Workman Tripod head is at the
desired height. The Workman Tripod head should be
level when installation is complete. Be careful not to
extend each leg too far in each increment so as to cause
the Workman Tripod to topple.
(6) Once at the proper height, check to be sure the
Workman Tripod is stabilized and plumb.
