MSA Workman® Tripod
22
(1) In accordance with the tripod instructions, raise the tripod only to a height where the tripod head
is easily reachable by the installer.
(2) Lay the winch on the ground to the right side (when facing the leg) of any leg and extract approx-
imately 9 ft (2.7 m) of line (D).

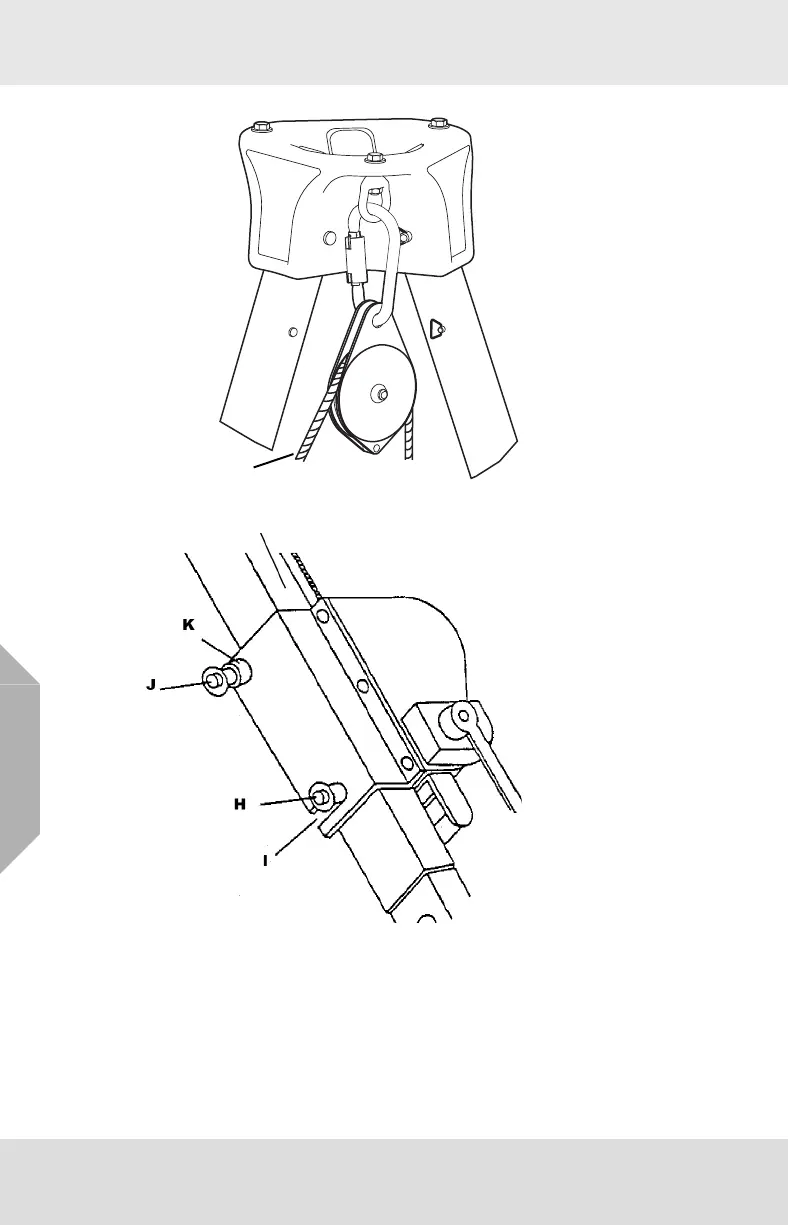

Fig. 6
Fig. 7 Outside Face of Tripod Leg
D Winch or fall arrester J Ball lock pin
H Pin K Holes
I Slot
D
