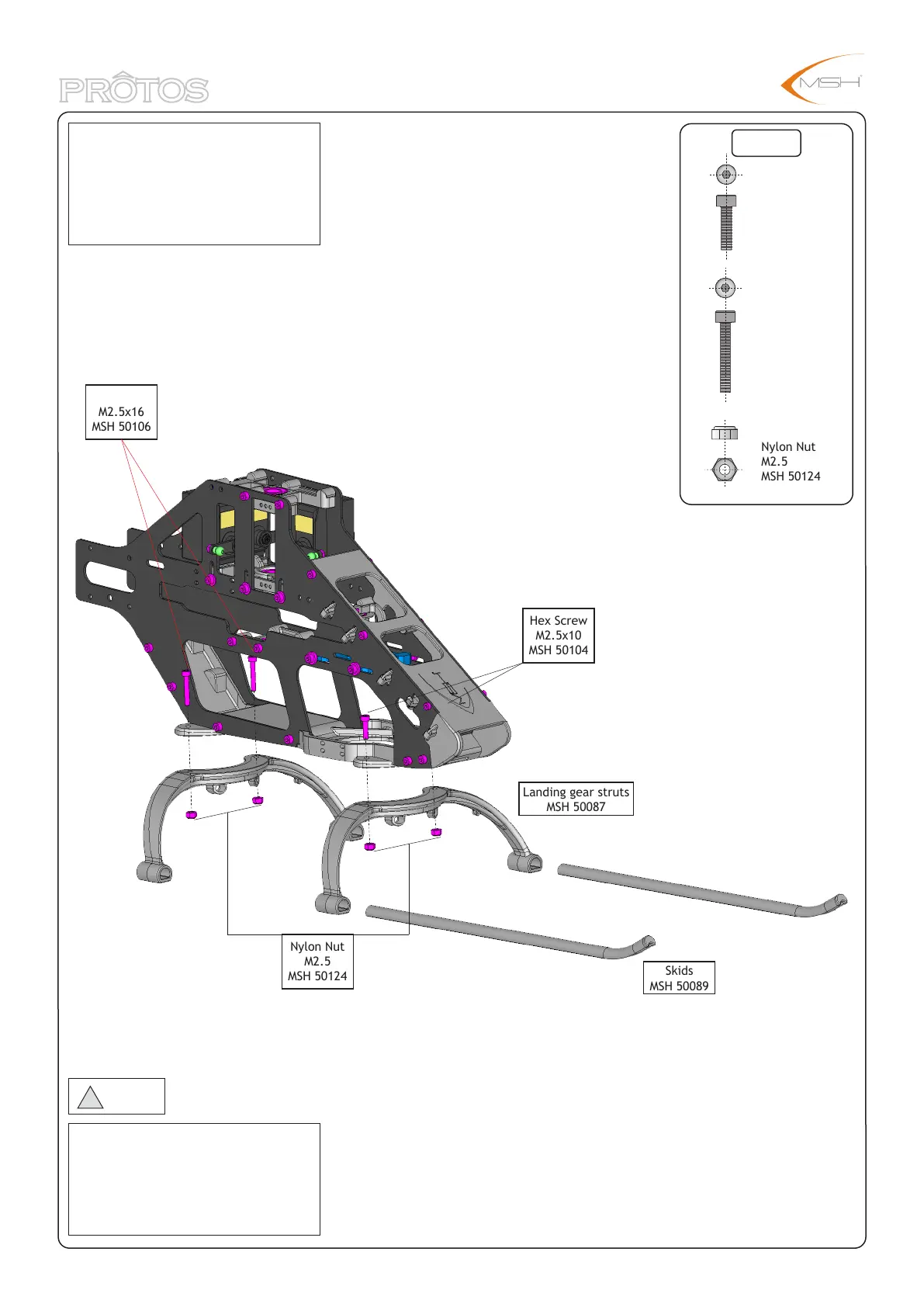

Nylon Nut
M2.5
MSH 50124
Hex Screw
M2.5x16
MSH 50106
Hex Screw
M2.5x10
MSH 50104
Skids
MSH 50089
Landing gear struts
MSH 50087
!
CAUTION
Tips/Instructions
BAG-B
Hex Screw
M2.5x10
MSH 50104
Hex Screw
M2.5x16
MSH 50106
Nylon Nut
M2.5
MSH 50124
Slide skids in both struts until "click"
in position. Both struts should "click".
If Skids are hard to slide in position
use an hair drier to heat struts holes.
Do not fully tighten hex screws 2.5x16
yet as they are used later to keep
boom braces in position.
11
