MSH Protos User Manual

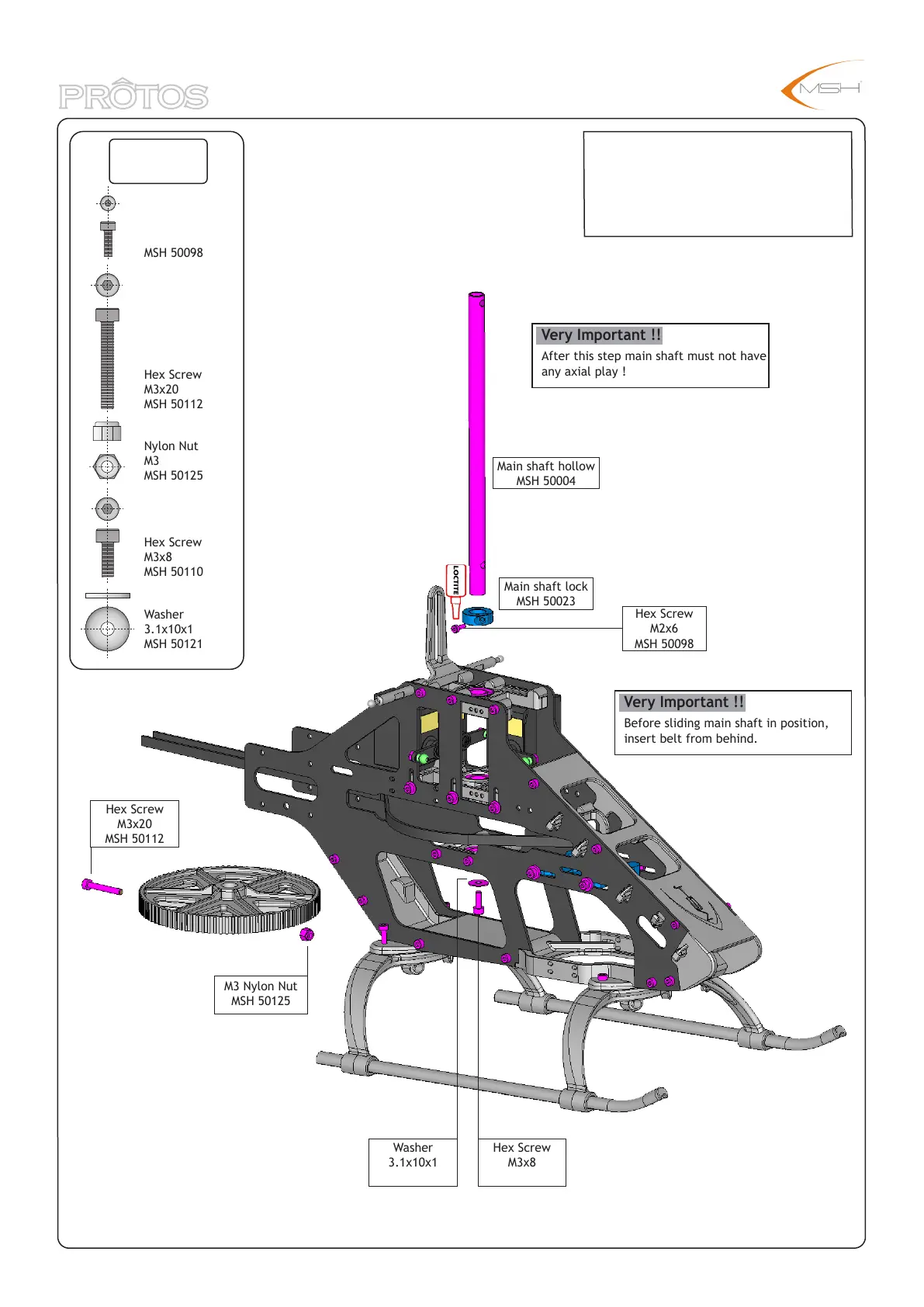

Hex Screw
M2x6
MSH 50098
Main shaft lock
MSH 50023
Main shaft hollow
MSH 50004
Hex Screw
M3x20
MSH 50112
M3 Nylon Nut
MSH 50125
Hex Screw
M3x8
MSH 50110
Washer
3.1x10x1
MSH 50121
Tips/Instructions
Very Important !!
BAG-C
Hex Screw
M2x6
MSH 50098
Hex Screw
M3x20
MSH 50112
Nylon Nut
M3
MSH 50125
Hex Screw
M3x8
MSH 50110
Washer
3.1x10x1
MSH 50121
Make sure hex screw M3x8 is fully tightened
on bottom of main shaft than pulling main
shaft gently lock collar in position.
Main shaft should not have any vertical play.
Before sliding main shaft in position,
insert belt from behind.
Belt from box
Very Important !!
After this step main shaft must not have
any axial play !
