Tips/Instructions

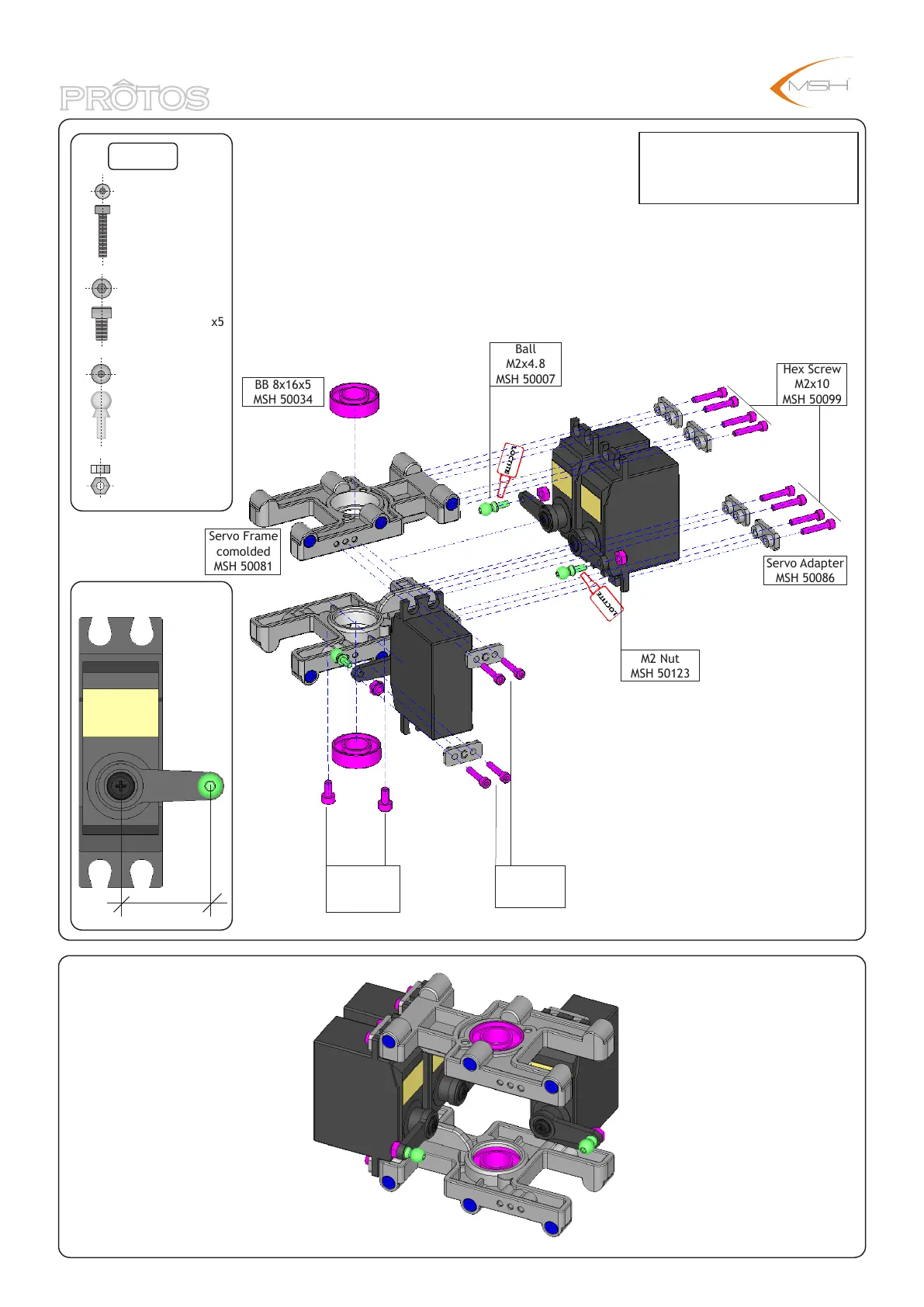

Hex screw M2.5x5 only on
lower servo frame.
BAG-A
Hex Screw M2.5x5
MSH 50101
Ball M2x4.8
MSH 50007
M2 Nut
MSH 50123
Hex Screw
M2.5x5
MSH 50101
Hex Screw
M2x10
MSH 50099
Hex Screw
M2x10
MSH 50099
Servo Adapter
MSH 50086
Ball
M2x4.8
MSH 50007
M2 Nut
MSH 50123
BB 8x16x5
MSH 50034
Servo Frame
comolded
MSH 50081
Hex Screw M2x10
MSH 50099
16 mm
7
