Belt Tension Adjustment

Pressing the belt moderately, it should move 2-3 mm.

Test tension as indicated in the picture.

Please make sure that belt tension is set properly on boths sides.

Front and Rear tension is set independently !!

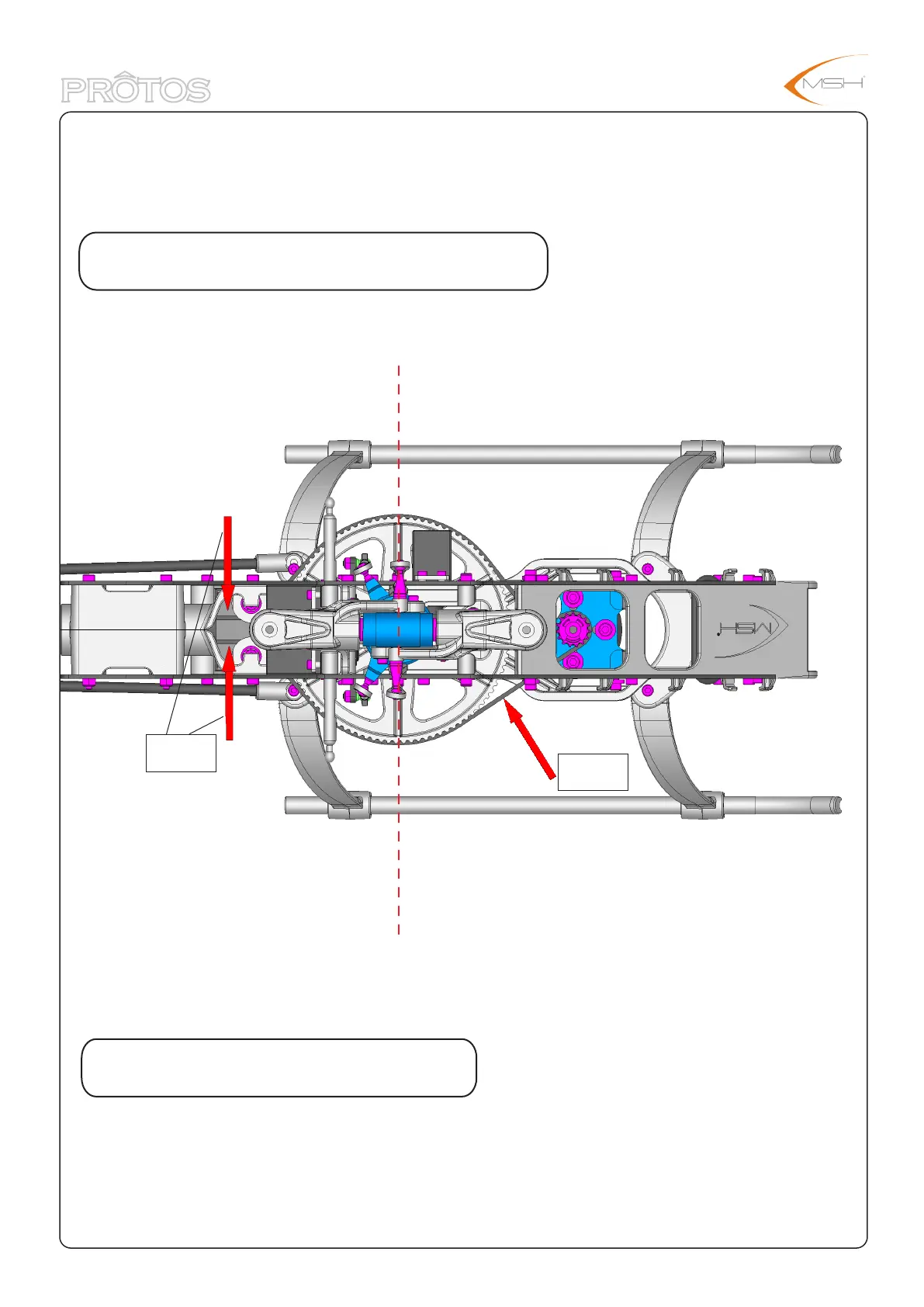

Front tension adjustment

(set with motor position)

Rear tension adjustment

(set with boom case position)

Belt tension

check point

Belt tension

check point
