2-13
Hardware Setup

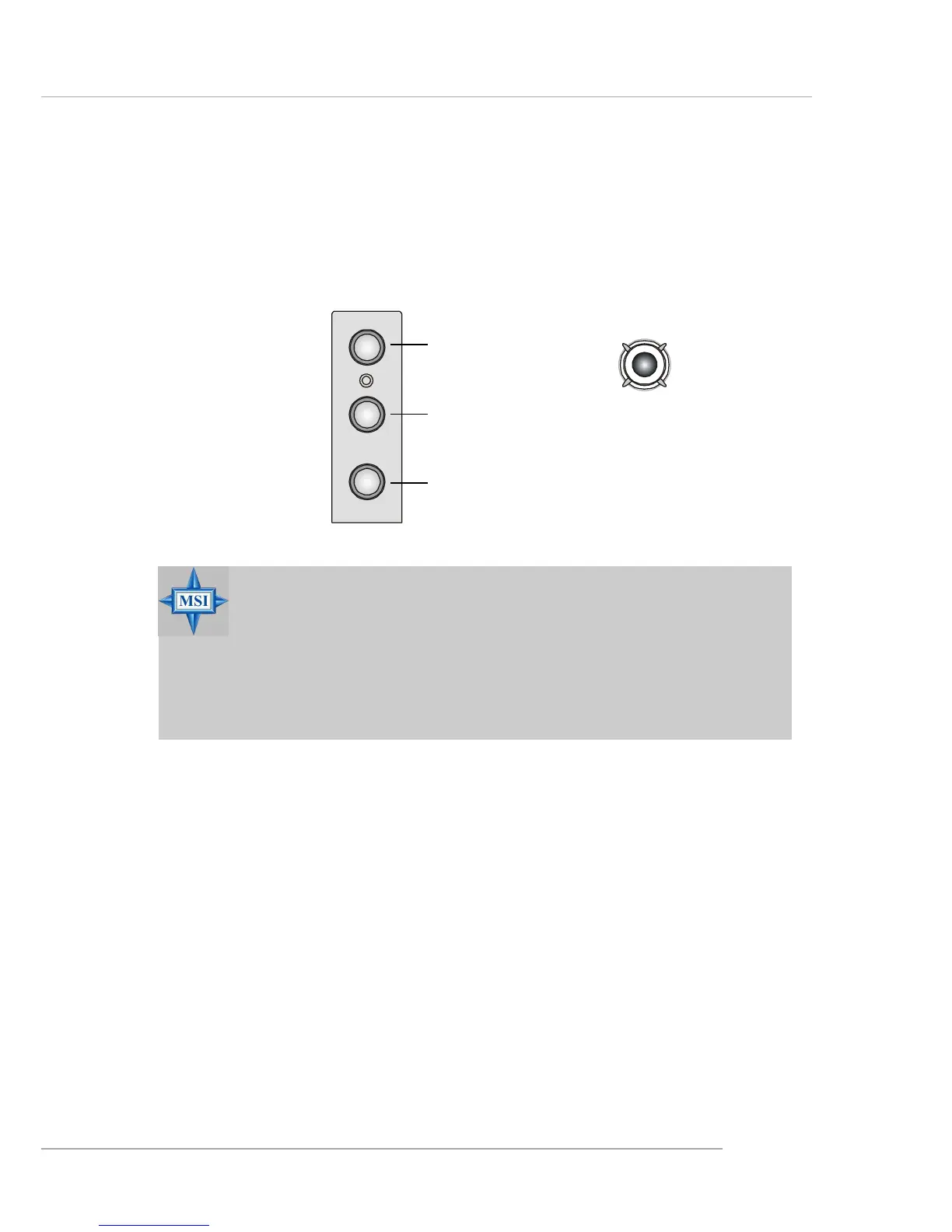

Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic is a connector for
microphones. SPDIF-out is a jack for coaxial fiber connection for digital audio
transmission.
Line Out
Line In
MIC
S/PDIF Out-Coaxial
MSI Reminds You...
For advanced audio application, ALC655 is provided to offer
support for 6-channel audio operation and can turn rear audio
connectors from 2-channel to 4-/6-channel audio. For more
information on 6-channel audio operation, please refer to
Appendix. Using 2-, 4- or 6-Channel Audio Function.
