Hardware Setup

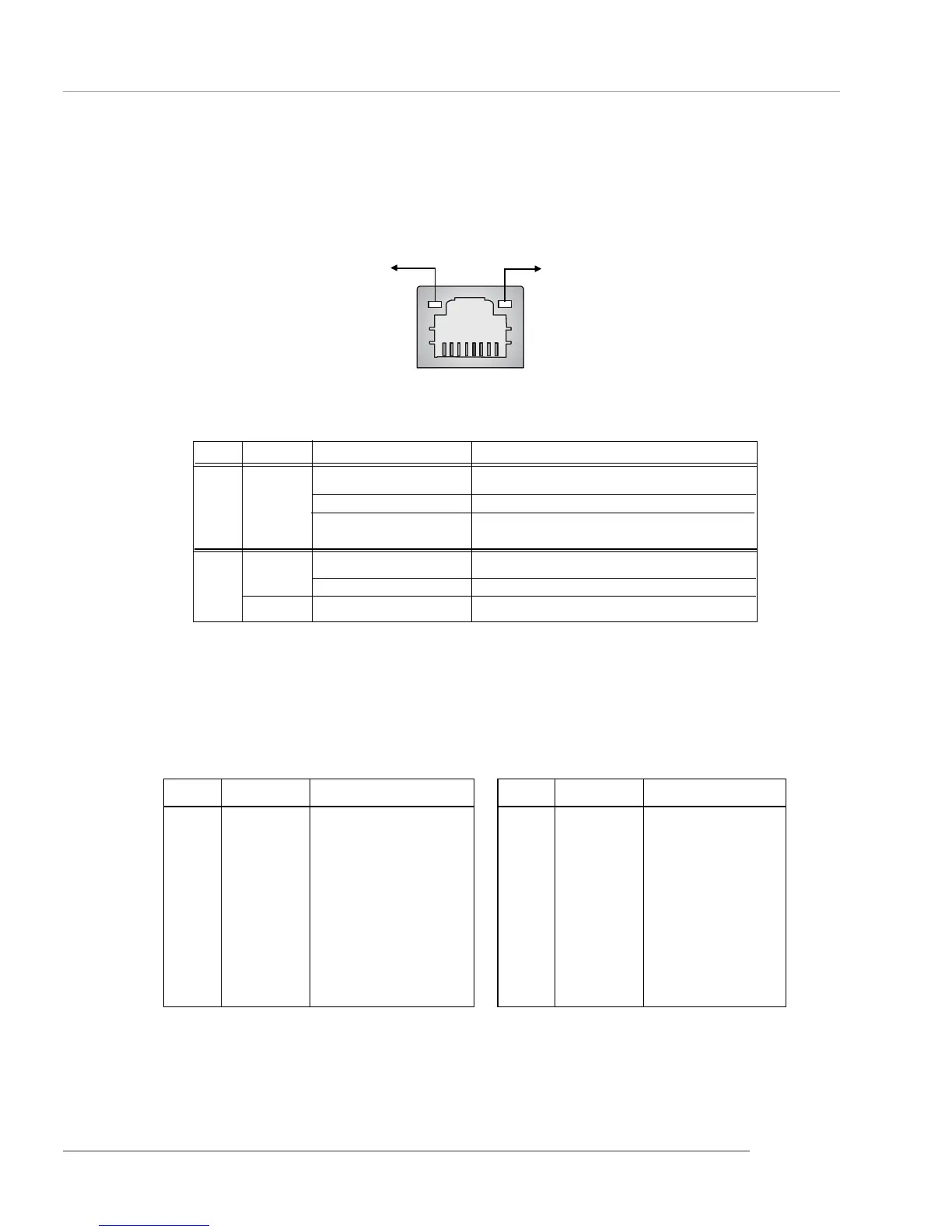

RJ-45 LAN Jack: 10/100 LAN (8100C) /Giga-bit LAN (8110S) (Optional)

The mainboard provides two standard RJ-45 jacks for connection to Local

Area Network (LAN). Giga-bit LAN enables data to be transferred at 1000, 100 or

10Mbps. You can connect a network cable to either LAN jack.

The pin assignments vary depending on the transfer rates: 10/100Mbps or

1000Mbps. Note that Pin 1/2, 3/6, 4/5, 7/8 must work in pairs. Please refer

to the following for details:

10/100 LAN Pin Definition Giga-bit LAN Pin Definition

PIN SIGNAL DESCRIPTION

1 D0P Differential Pair 0+

2 D0N Differential Pair 0-

3 D1P Differential Pair 1+

4 D2P Differential Pair 2+

5 D2N Differential Pair 2-

6 D1N Differential Pair 1-

7 D3P Differential Pair 3+

8 D3N Differential Pair 3-

PIN SIGNAL DESCRIPTION

1 TDP Transmit Differential Pair

2 TDN Transmit Differential Pair

3 RDP Receive Differential Pair

4 NC Not Used

5 NC Not Used

6 RDN Receive Differential Pair

7 NC Not Used

8 NC Not Used

LED Color LED State Condition

Off LAN link is not established.

Left Orange On (steady state) LAN link is established.

On (brighter & pulsing) The computer is communicating with another

computer on the LAN.

Green Off 10 Mbit/sec data rate is selected.

Right On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

Link Indicator

8 1

Activity Indicator

RJ-45 LAN Jack
