MSI 865PE Neo3-F User Manual

E-2-14
MS-6728 ATX Mainboard

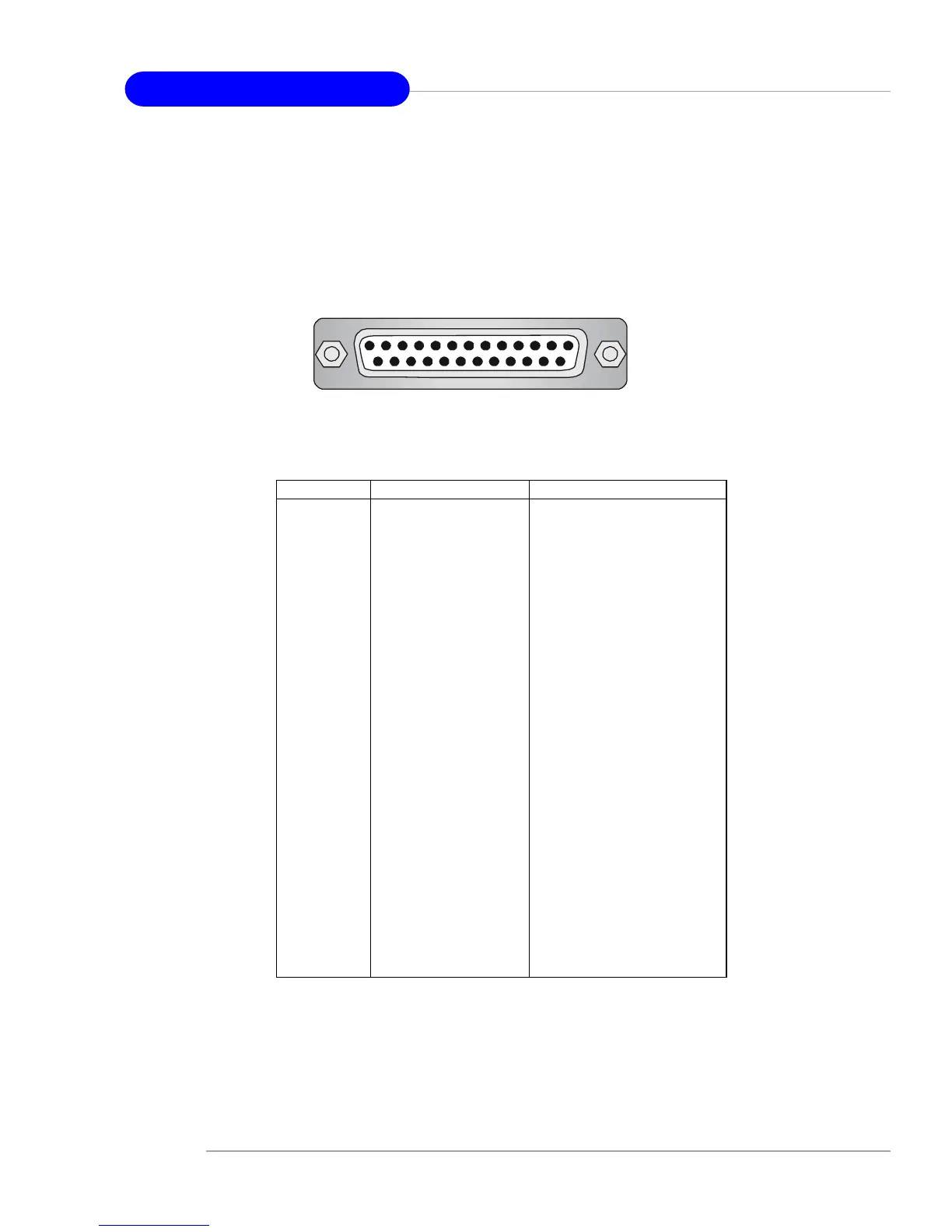

Parallel Port Connector: LPT1
The mainboard provides a 25-pin female centronic connector as LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and
Extended Capabilities Parallel Port (ECP) mode.
PIN SIGNAL DESCRIPTION
1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground
Pin Definition
13 1
14
25

MSI 865PE Neo3-F Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Supported CPU	Intel Pentium 4 / Celeron
Front Side Bus	800/533/400 MHz
Memory Slots	4 x DIMM
Memory Type	DDR SDRAM
Max Memory	4 GB
Expansion Slots	1 x AGP 8X, 5 x PCI
Audio Chipset	Realtek ALC655
LAN Speed	10/100Mbps
PS/2	2
Form Factor	ATX
Storage Interfaces	2 x ATA100, 2 x SATA 1.5Gb/s
Audio Channels	6 Channels
LAN Chipset	Realtek 8100C
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
