MSI A520M PRO-C DASH User Manual

7
 


Status 
Off No link
Yellow Linked
Blinking Data activity

Status 
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection


To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
 Click on the  to open the dialog
below.
 Select .
 Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.

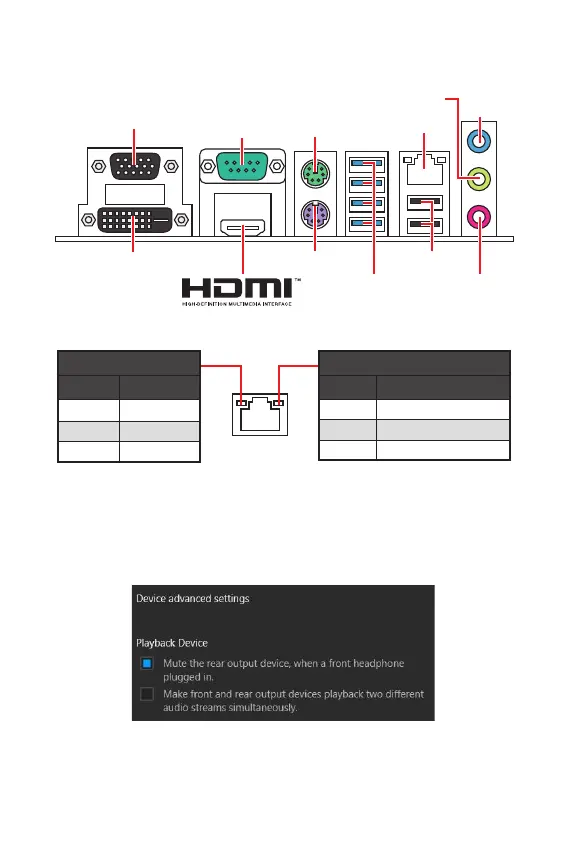

PS/2 Mouse
LAN
USB 3.2
Gen 1 5Gpbs
(Type-A)
USB 2.0
PS/2 Keyboard
DVI-D
VGA
COM
Line-in
Line-out
Mic in

MSI A520M PRO-C DASH Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz
Wi-Fi	No
LAN controller	Realtek RTL8111EPV
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Number of mounting holes	6
Motherboard chipset family	AMD
Cables included	SATA
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
BIOS type	-
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16000 MB
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen

Weight and Dimensions

Depth	220 mm
Width	244 mm
