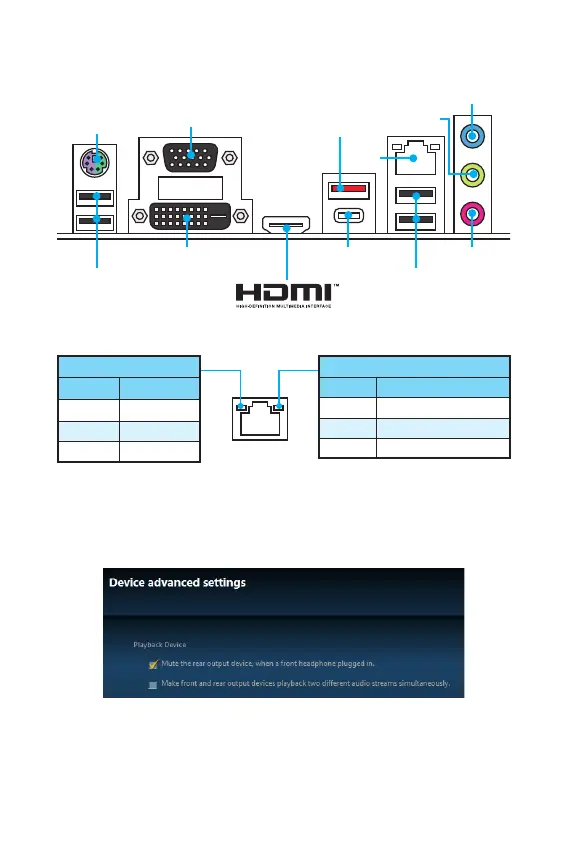

Rear I/O Panel

PS/2 port

LAN

USB 3.1 Gen2

Type-C

USB 2.0

DVI-D

Line-in

Line-out

Mic in

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

LAN Port LED Status Table

USB 2.0

VGA

Audio 7.1-channel Configuration

To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1

connector and follow the below steps.

1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog

below.

2. Select Mute the rear output device, when a front headphone plugged in.

3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into

a device at an audio jack, a dialogue window will pop up asking you which device

is current connected.

USB 3.1 Gen2
