MSI A68HM User Manual

12
  

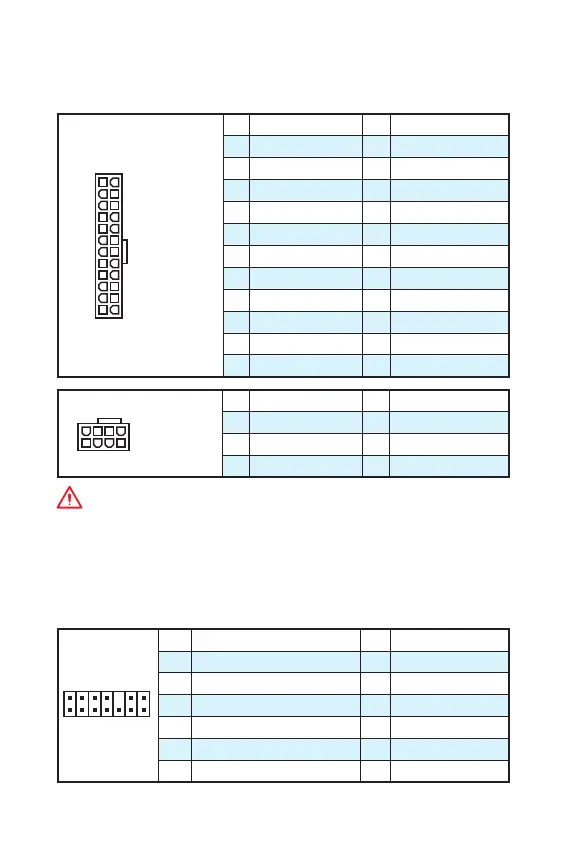

JPWR1~2:  
      
ATX.
24
131
12
JPWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
JPWR2
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
!
      
        .
JTPM1:   
       (Trusted Platform
Module).   .    .
1
2 14
13
1 LPC Clock 2 3V Standby power
3 LPC Reset 4 3.3V Power
5 LPC address & data pin0 6 Serial IRQ
7 LPC address & data pin1 8 5V Power
9 LPC address & data pin2 10 No Pin
11 LPC address & data pin3 12 Ground
13 LPC Frame 14 Ground

MSI A68HM Specifications

General

Form Factor	Micro ATX
Chipset	AMD A68H
CPU Socket	FM2+
Memory Slots	2 x DIMM
Maximum Memory	32 GB
Storage Interface	4 x SATA 6Gb/s
Expansion Slots	1 x PCIe 2.0 x1
Audio	Realtek ALC887
LAN	Realtek RTL8111G
Video Outputs	1 x HDMI
Memory Speed	2133/1866/1600
USB Ports	2 x USB 3.0 (rear) 6 x USB 2.0
