MSI AmethystM - DDR Module Installation Procedure

2-8
MS-7184 M-ATX Mainboard
Installing DDR Modules

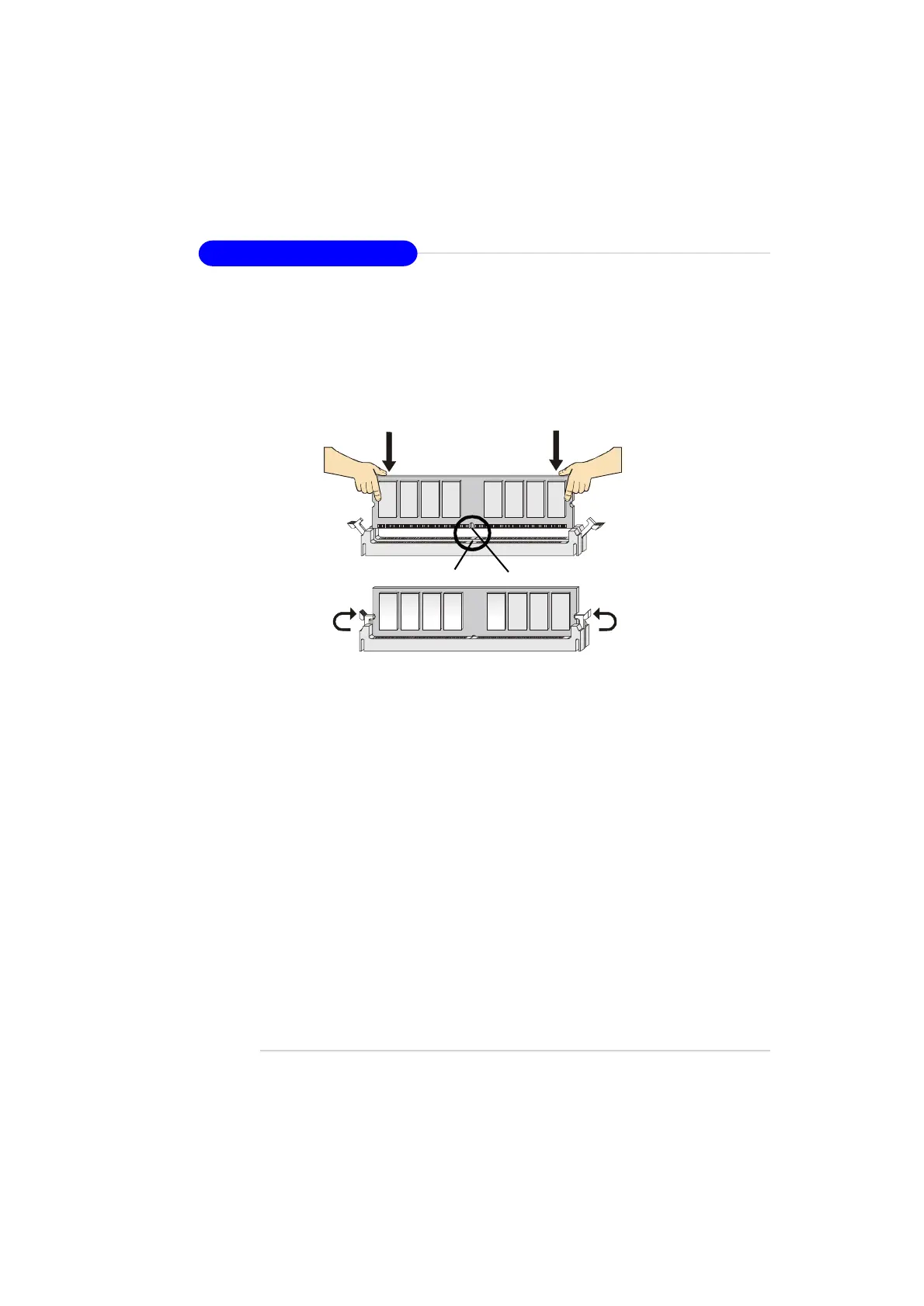

1. The DDR DIMM has only one notch on the center of module. The module will
only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt
Notch
