Hardware Setup
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
SATA1~ SATA2 Pin Definition
Connect to SATA1/2
Take out the dust cover and
connect to the hard disk
devices
Serial ATA cable

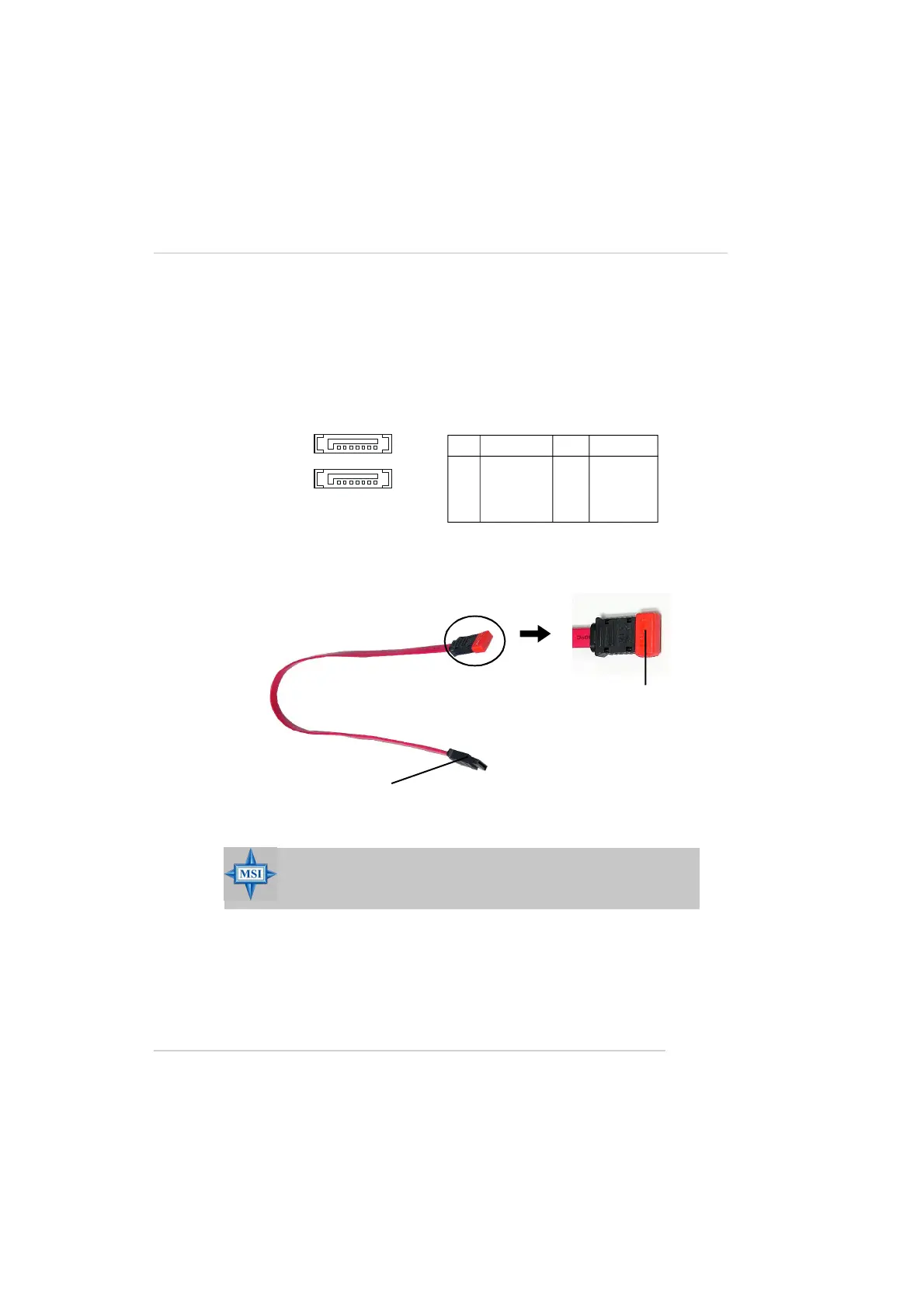

Serial ATA Connectors: SATA1~SATA2
The ATI SB400 SouthBridge supports two serial ATA connectors SATA1~SATA2.
SATA1~SATA2 are high-speed Serial ATA interface ports. Each supports 1
st
genera-
tion serial ATA data rates of 150MB/s and is fully compliant with Serial ATA 1.0
specifications. Each Serial ATA connector can connect to 1 hard disk device.
71
SATA1
SATA2
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
