MSI AmethystM - Back Panel Port Identification

2-10
MS-7184 M-ATX Mainboard

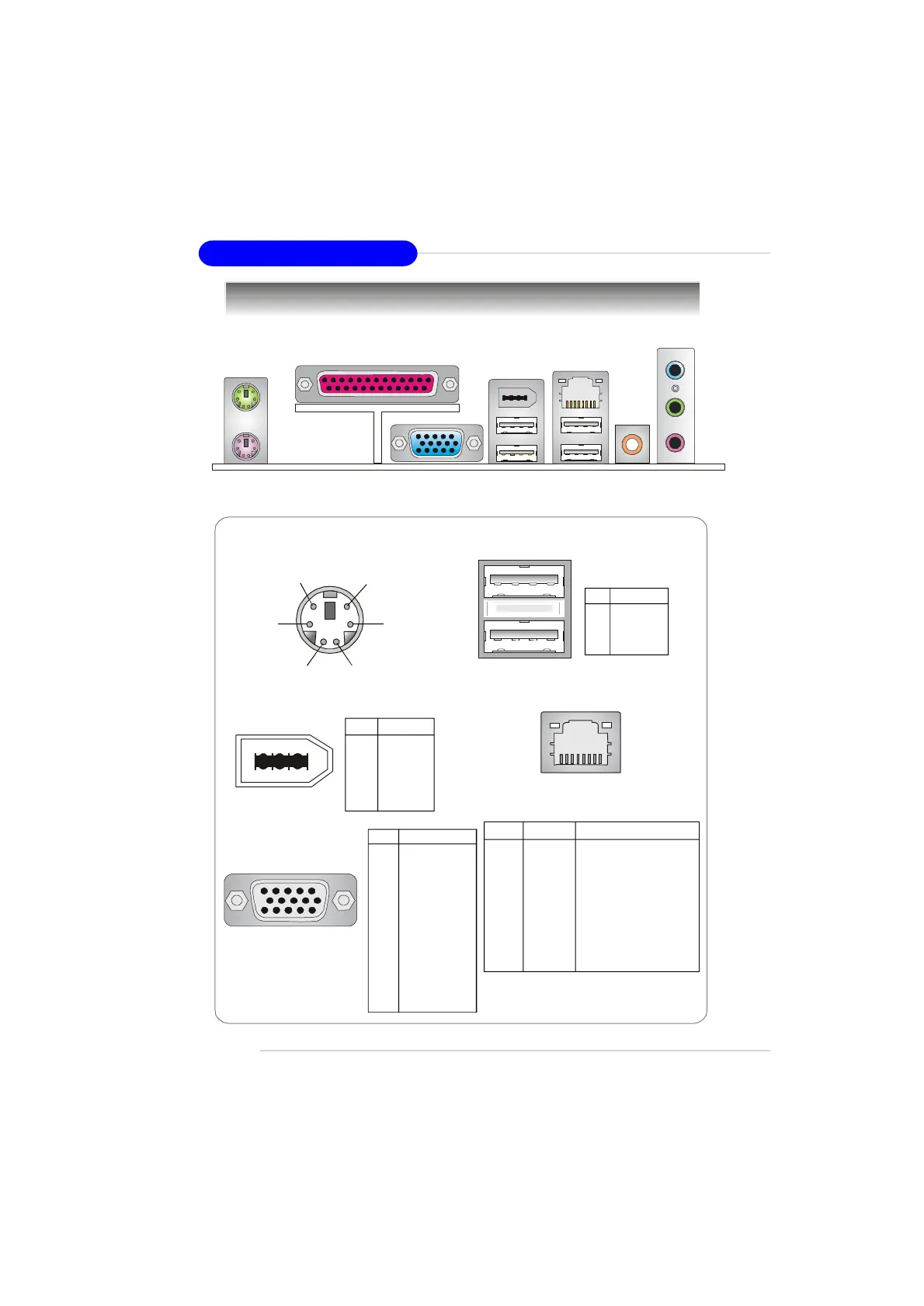

Back Panel
Mouse/Keyboard Connector USB Ports
1 2 3 4
PIN SIGNAL
1 VCC
2 -Data
3 +Data
4 GND
RJ-45 LAN Jack
IEEE 1394 Port
Keyboard
USB Ports
L-Out
Mic
L-In
Mouse
Parallel
1394 Port
LAN
VGA Port SPDIF-Out
VGA Port
1
5
11
15
PIN SIGNAL
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 N/C
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
PIN SIGNAL
1 PWR
2 GND
3 TPB-
4 TPB+
5 TPA-
6 TPA+
1
2
3
4
5
6
Pin1
Mouse/KBD
DATA
Pin2 NC
Pin3 GNDPin4 VCC
Pin5
Mouse/KBD Clock
Pin6 NC
PIN SIGNAL DESCRIPTION
1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair
4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used
10/100 LAN
8 1
