MSI B760 GAMING PLUS WIFI User Manual

32

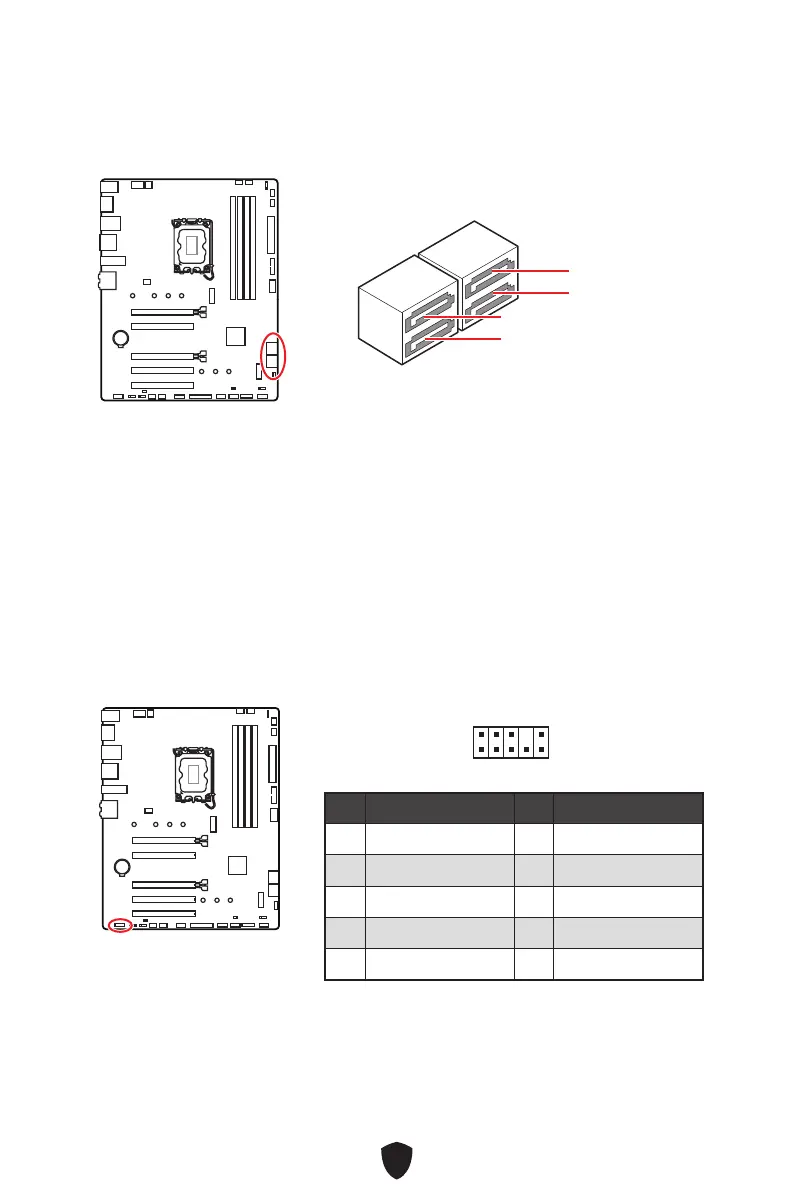

SATA5~8: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.

Important
 Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
Pin Signal Name Pin Signal Name
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
SATA5
SATA7
SATA6
SATA8

MSI B760 GAMING PLUS WIFI Specifications

General

Form Factor	ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Memory Type	DDR5
PCIe 5.0 x16 Slot	1
PCIe 4.0 x16 Slot	1
PCIe 3.0 x1 Slot	2
M.2 Slots	2
SATA Ports	4
Networking	2.5G LAN
Audio	Realtek ALC897
RGB Headers	2
