Important
 The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 Please use MSI’s software to control the extended LED strip.
JRGB1: RGB LED connector
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB connector
JRGB extension cable
5050 RGB LED strips 12V

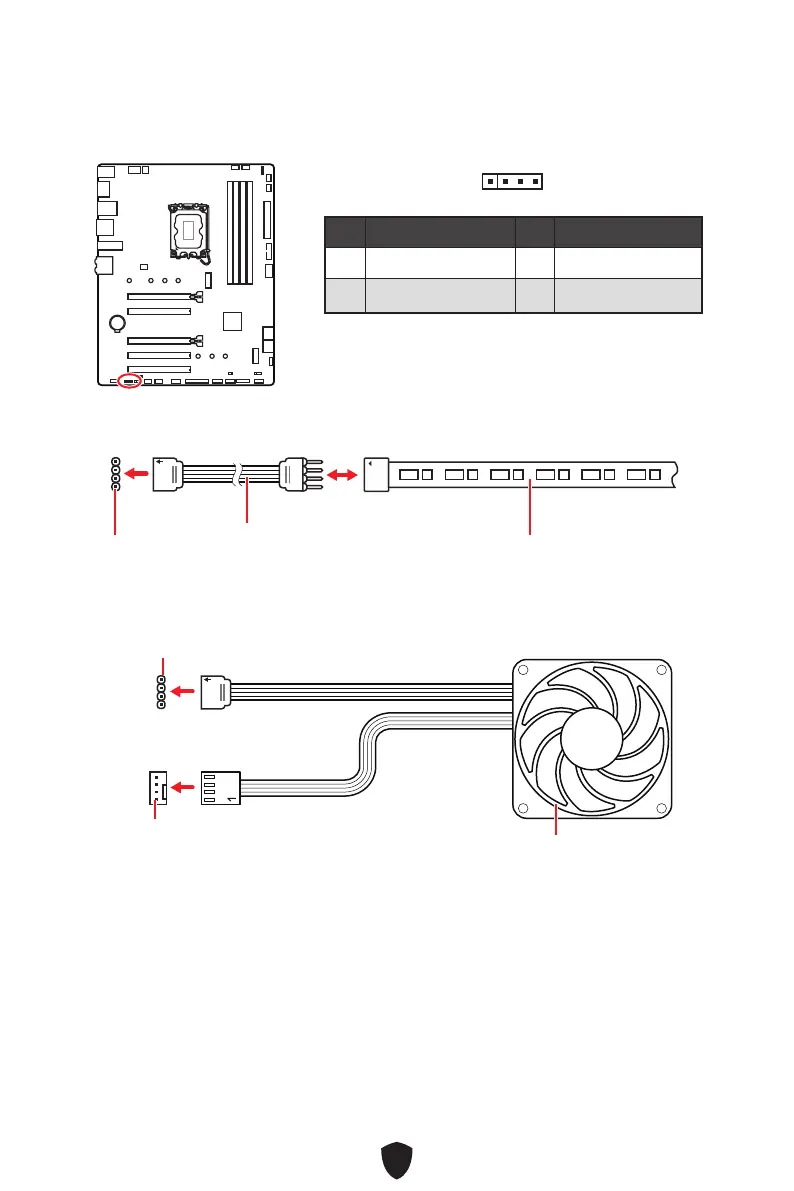

RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System fan connector
RGB LED Fan Connection
RGB LED fan
Pin Signal Name Pin Signal Name
1 +12V 2 G
3 R 4 B
1

MSI B760 GAMING PLUS WIFI Specifications

General

Form Factor	ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Memory Type	DDR5
PCIe 5.0 x16 Slot	1
PCIe 4.0 x16 Slot	1
PCIe 3.0 x1 Slot	2
M.2 Slots	2
SATA Ports	4
Networking	2.5G LAN
Audio	Realtek ALC897
RGB Headers	2
