MSI B760 GAMING PLUS WIFI User Manual

36

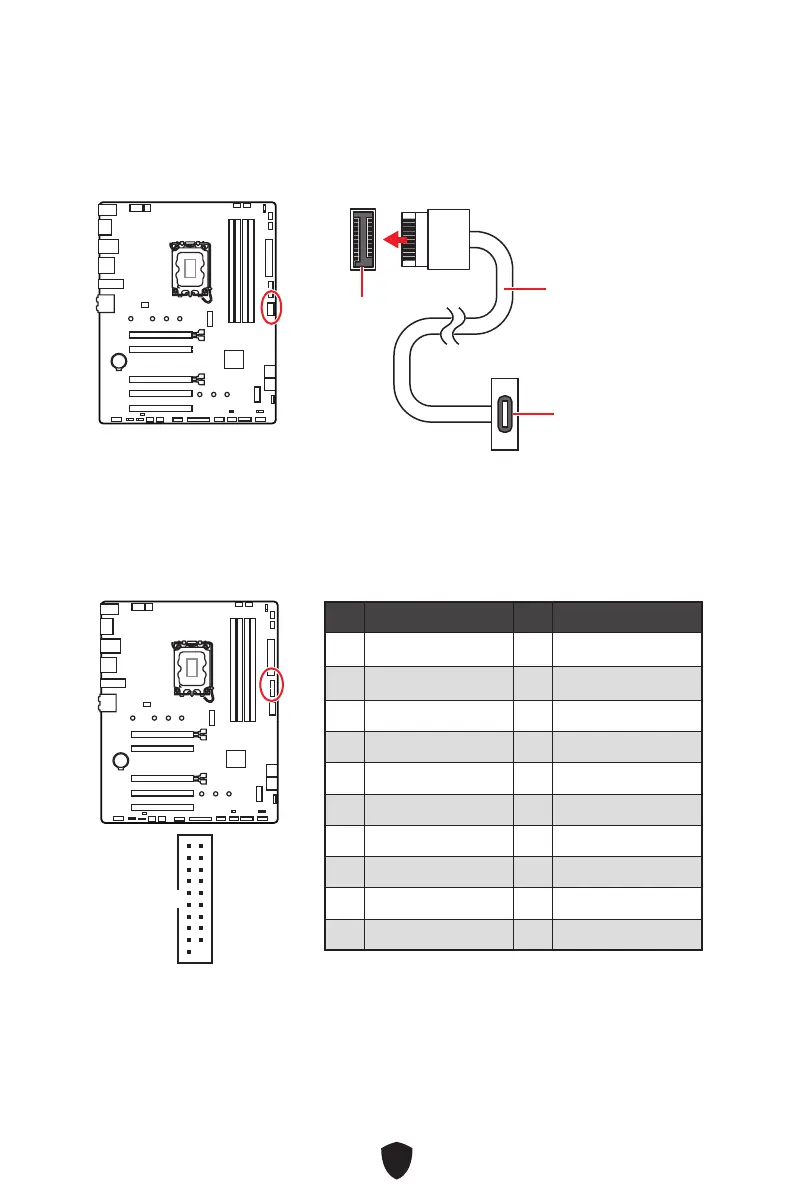

JUSB2: USB 3.2 Gen 1 Connectors
This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
JUSB1: USB 3.2 Gen 1 Type-C Front Panel Connector
This connector allows you to connect USB 3.2 Gen 1 5Gbps Type-C connector on the
front panel. The connectors possess a foolproof design. When you connect the cable,
be sure to connect it with the corresponding orientation.
JUSB1
USB Type-C Cable
USB Type-C port on
the front panel
Pin Signal Name Pin Signal Name
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20

MSI B760 GAMING PLUS WIFI Specifications

General

Form Factor	ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Memory Type	DDR5
PCIe 5.0 x16 Slot	1
PCIe 4.0 x16 Slot	1
PCIe 3.0 x1 Slot	2
M.2 Slots	2
SATA Ports	4
Networking	2.5G LAN
Audio	Realtek ALC897
RGB Headers	2
